Downlight 3-CCT | cut out Ø168-178mm | 14/20W

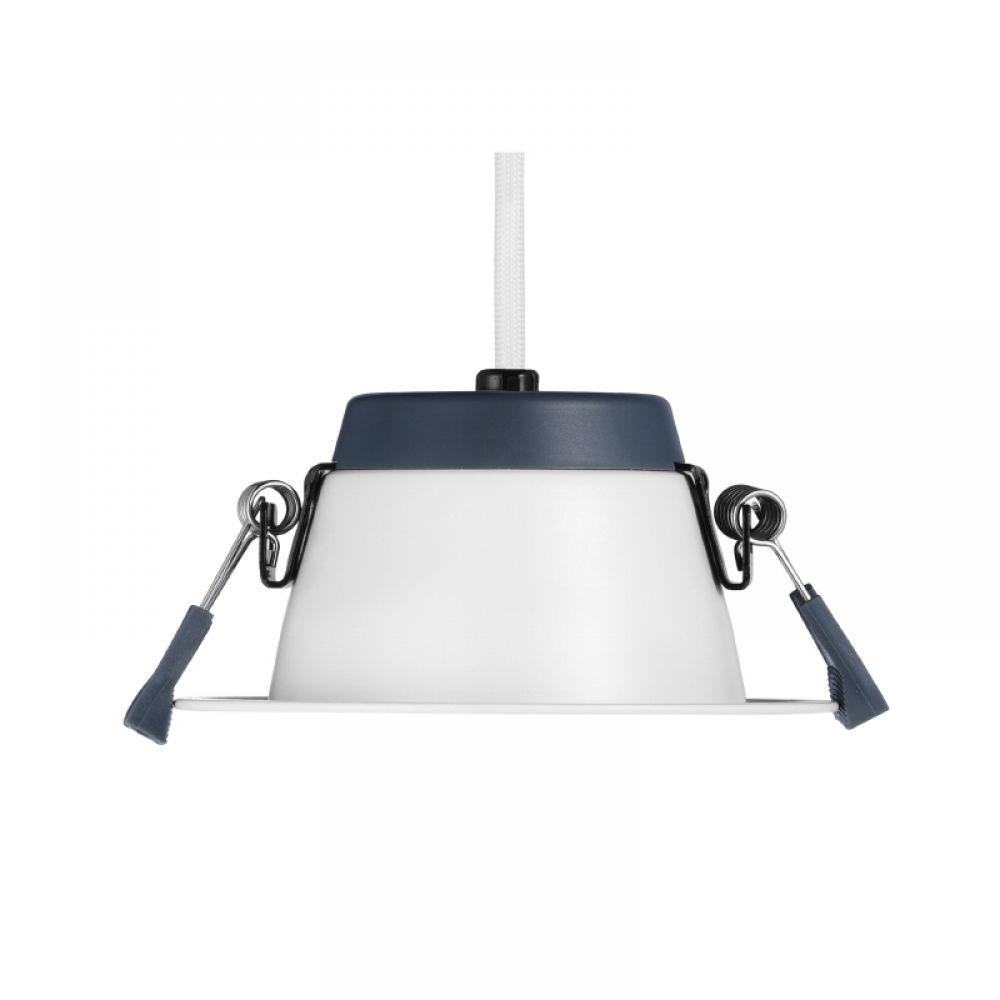

136-126This 3-CCT downlight provides glare-free lighting with a low viewing angle and UGR rating. Features a 3-CCT switch (3000K, 4000K, 6000K) and adjustable Max. system power (70%/100%). Comes with a driver and plug for fast installation.
Key product features:
- Max. system power (W): 14 - 20
- Colour temperature (K): 3000 - 6000
- Housing colour: White
- Outer diameter (mm): 200
- Light distributor: Diffuser lens/optic/panel
- Built-in diameter (mm): 168 - 178
- Connection type: Plug
Product Name
Downlight 3-CCT | cut out Ø168-178mm | 14/20W
Ean
8714984923027
Outer box qty
20st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
White
Housing material
Aluminium
Material cover
Plastic matt/satinized
Connection type
EU plug
Height/depth
68mm
Outer diameter
200mm
Built-in diameter
168 - 178mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM6
Colour of light adjustable
Positions
Reflector colour
White
Colour temperature
3000 - 4000 - 6000K
Colour rendering index CRI
80-89
Luminous flux adjustable
No
Light outlet
Direct
Beam angle
> 80° - Extreme wide beam
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
220 - 240V
Nominal current
80 - 80mA
Number of poles
2
Light distributor
Diffuser lens/optic/panel
Light distribution
Symmetric
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
No
With control gear
Yes
Degree of protection (IP), front side
IP44
Degree of protection (IP), rear side
IP20
Surface protection
Lacquered
Impact strength
IK02
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
20W
Rated luminous flux according to IEC 62722-2- 1
1540 - 2200lm
Luminaire efficacy
110 - 110lm/W
Power factor
0.95
Suitable for lamp power
0 - 0W
Dimming method
Non-dimmable
Surface brushed
No
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
not adjustable
Unified Glare Ratio (UGR)
26.8
Reflector
None
Warranty
5 years
Product Name
Downlight 3-CCT | cut out Ø168-178mm | 14/20W
Beam angle adjustable
No
Ean
8714984923027
Voltage type
AC
Outer box qty
20st
Nominal voltage
220 - 240V
Lamp type
LED not exchangeable
Nominal current
80 - 80mA
Lamp holder
None
Number of poles
2
Housing colour
White
Light distributor
Diffuser lens/optic/panel
Housing material
Aluminium
Light distribution
Symmetric
Material cover
Plastic matt/satinized
Connectable conductor cross section
0.75 - 2.5mm²
Connection type
EU plug
Type of control gear
LED operating device current-controlled
Height/depth
68mm
Exchangeable control gear
No
Outer diameter
200mm
With control gear
Yes
Built-in diameter
168 - 178mm
Degree of protection (IP), front side
IP44
Suitable for built-in mounting
Yes
Degree of protection (IP), rear side
IP20
Suitable for surface mounting
No
Surface protection
Lacquered
Suitable for pedestal/floor mounting
No
Impact strength
IK02
Suitable for wall mounting
No
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
Yes
Max. system power
20W
Suitable for light-track mounting
No
Rated luminous flux according to IEC 62722-2- 1
1540 - 2200lm
Suitable for clamp-mounting
Yes
Luminaire efficacy
110 - 110lm/W
With movement sensor
No
Power factor
0.95
With presence detector
No
Suitable for lamp power
0 - 0W
With light sensor
No
Dimming method
Non-dimmable
Colour of light
White
Surface brushed
No
Colour consistency (McAdam ellipse)
SDCM6
Type of wiring
Ending
Colour of light adjustable
Positions
Emergency power supply system
None
Reflector colour
White
Emergency function monitoring system
None
Colour temperature
3000 - 4000 - 6000K
Adjustability
not adjustable
Colour rendering index CRI
80-89
Unified Glare Ratio (UGR)
26.8
Luminous flux adjustable
No
Reflector
None
Light outlet
Direct
Warranty
5 years
Beam angle
> 80° - Extreme wide beam

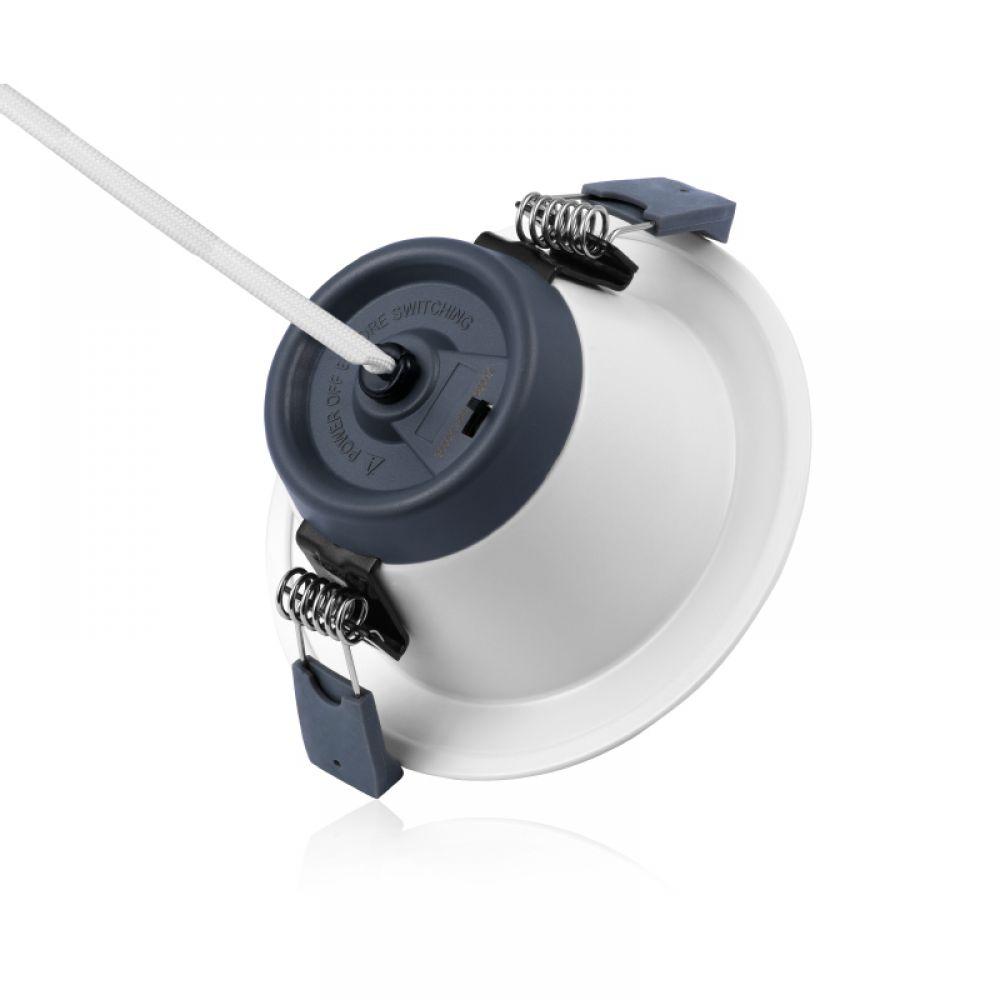

The opal diffuser conceals the internal components while providing uniform light distribution. The switch, positioned on top of the fixture, enables easy adjustment of color temperature (3000K, 4000K, 6000K). The included driver with adjustable power and plug ensures an efficient and fast installation.
This downlight is part of a versatile collection with various power ratings, outer diameters, and cutout sizes, offering a tailored solution for multiple applications and projects.
Additional Information
More details about this product can be found in the specifications. For accessories, available options, and related products, see the related items section. For inquiries or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-downlight-3-cct-cut-out-o168-178mm-1420w-136-126.pdf
Energy labels
Manual
136-126_Manual_NL.pdf
136-126_Manual_EN.pdf
Characteristics sheet
136-126-photometric-light-report.pdf
136-126-photometric-light-report-detailed.zip
136-126-eulumdat.zip
