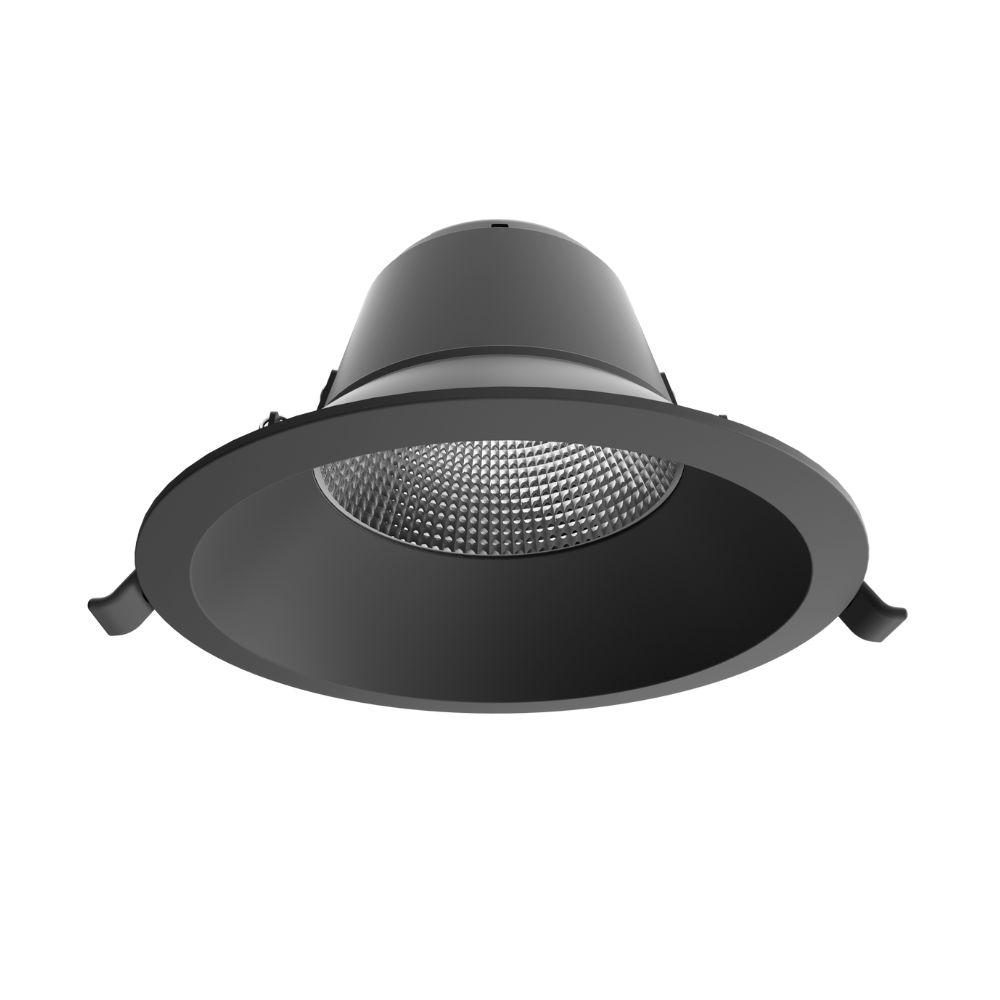

Downlight | Ø167mm | black | 5-CCT | 360mA | no driver
136-5075CCT downlight without driver for maximum design freedom in control configuration. Compatible with various dimming technologies and lighting protocols. Features integrated switch for 5 colour temperatures, IP44 front rating and low glare (UGR<19).
Key product features
- Nominal voltage (V): 34
- Nominal current (mA): 0 – 360
- Max. system power (W): 15
- Colour temperature (K): 2700 – 3000 – 3500 – 4000 – 5700
- Housing colour: Black
- Outer diameter (mm): 167
- Built-in diameter (mm): 145 - 155
Product Name
Downlight | Ø167mm | black | 5-CCT | 360mA | no driver
Ean
8714984951419
Outer box qty
30st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Black
Housing material
Aluminium
Material cover
Plastic, opal

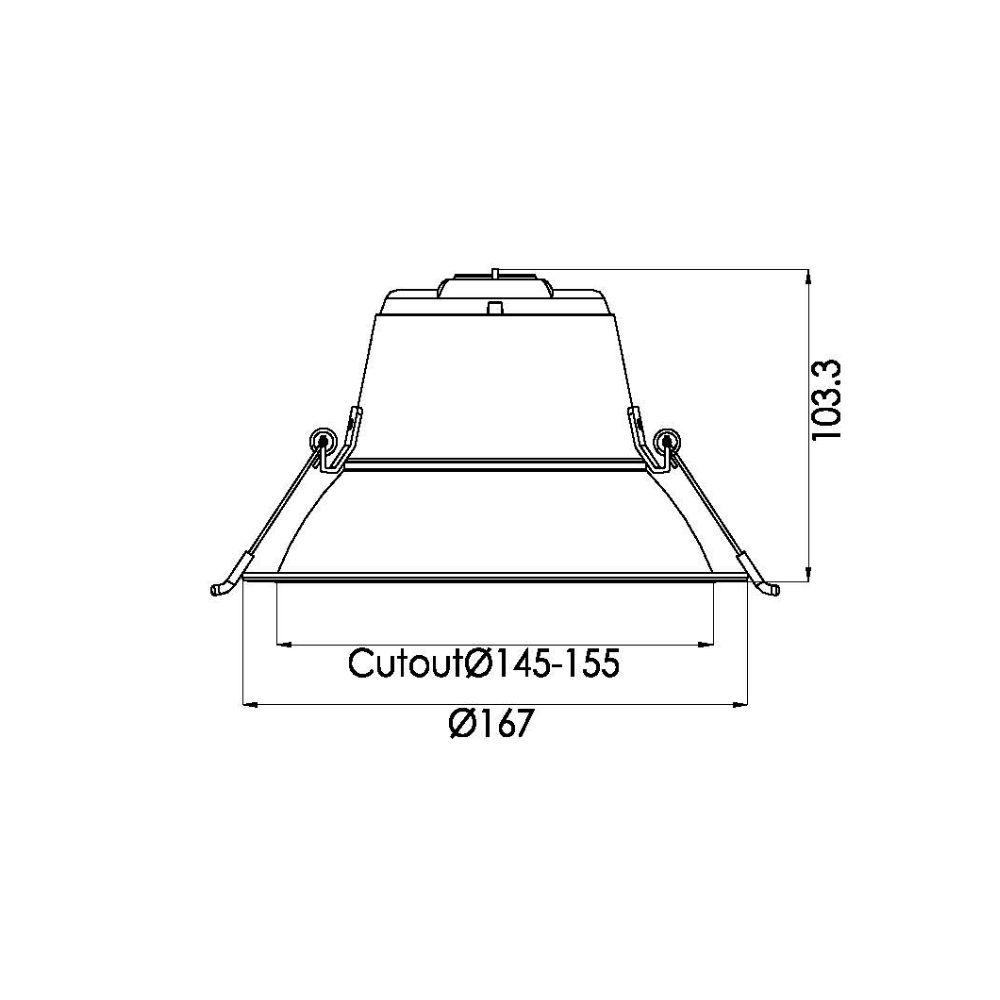

Height/depth
103mm
Outer diameter
167mm
Built-in diameter
145 - 155mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
No
Suitable for ceiling mounting
No
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
Positions
Reflector colour
Silver
Colour temperature
2700 - 3000 - 3500 - 4000 - 5700K
Colour rendering index CRI
90-100
Luminous flux adjustable
Continuously variable
Light outlet
Direct
Beam angle
41-80° - Wide beam
Beam angle adjustable
No
Voltage type
DC
Nominal voltage
34 - 34V
Nominal current
0 - 360mA
Number of poles
3
Light source included
Yes, fixed LED
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0.5 - 0.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
Yes
With control gear
No
Degree of protection (IP), front side
IP44
Degree of protection (IP), rear side
IP20
Surface protection
Powder coating
Impact strength
IK02
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
15W
Rated luminous flux according to IEC 62722-2- 1
0 - 1500lm
Luminaire efficacy
100 - 100lm/W
Power factor
1
Suitable for lamp power
0 - 0W
Dimming method
Optional
Surface brushed
No
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
not adjustable
Unified Glare Ratio (UGR)
19
Reflector
High-gloss
Warranty
5 years
Product Name
Downlight | Ø167mm | black | 5-CCT | 360mA | no driver
Voltage type
DC
Ean
8714984951419
Nominal voltage
34 - 34V
Outer box qty
30st
Nominal current
0 - 360mA
Lamp type
LED not exchangeable
Number of poles
3
Lamp holder
None
Light source included
Yes, fixed LED
Housing colour
Black
Light distributor
Reflector
Housing material
Aluminium
Light distribution
Symmetric
Material cover
Plastic, opal
Connectable conductor cross section
0.5 - 0.5mm²
Height/depth
103mm
Type of control gear
LED operating device current-controlled
Outer diameter
167mm
Exchangeable control gear
Yes
Built-in diameter
145 - 155mm
With control gear
No
Suitable for built-in mounting
Yes
Degree of protection (IP), front side
IP44
Suitable for surface mounting
No
Degree of protection (IP), rear side
IP20
Suitable for pedestal/floor mounting
No
Surface protection
Powder coating
Suitable for wall mounting
No
Impact strength
IK02
Suitable for ceiling mounting
No
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for light-track mounting
No
Max. system power
15W
Suitable for clamp-mounting
Yes
Rated luminous flux according to IEC 62722-2- 1
0 - 1500lm
With movement sensor
No
Luminaire efficacy
100 - 100lm/W
With presence detector
No
Power factor
1
With light sensor
No
Suitable for lamp power
0 - 0W
Colour of light
White
Dimming method
Optional
Colour consistency (McAdam ellipse)
SDCM3
Surface brushed
No
Colour of light adjustable
Positions
Type of wiring
Ending
Reflector colour
Silver
Emergency power supply system
None
Colour temperature
2700 - 3000 - 3500 - 4000 - 5700K
Emergency function monitoring system
None
Colour rendering index CRI
90-100
Adjustability
not adjustable
Luminous flux adjustable
Continuously variable
Unified Glare Ratio (UGR)
19
Light outlet
Direct
Reflector
High-gloss
Beam angle
41-80° - Wide beam
Warranty
5 years
Beam angle adjustable
No
This version of the 5CCT series is supplied without a driver, making it ideal for applications that require specific dimming protocols. Whether you're working with DALI, 1–10V, trailing edge, or wireless systems: a compatible external driver allows complete customisation. Tronix also offers a plug & play option with pre-assembled driver if desired.

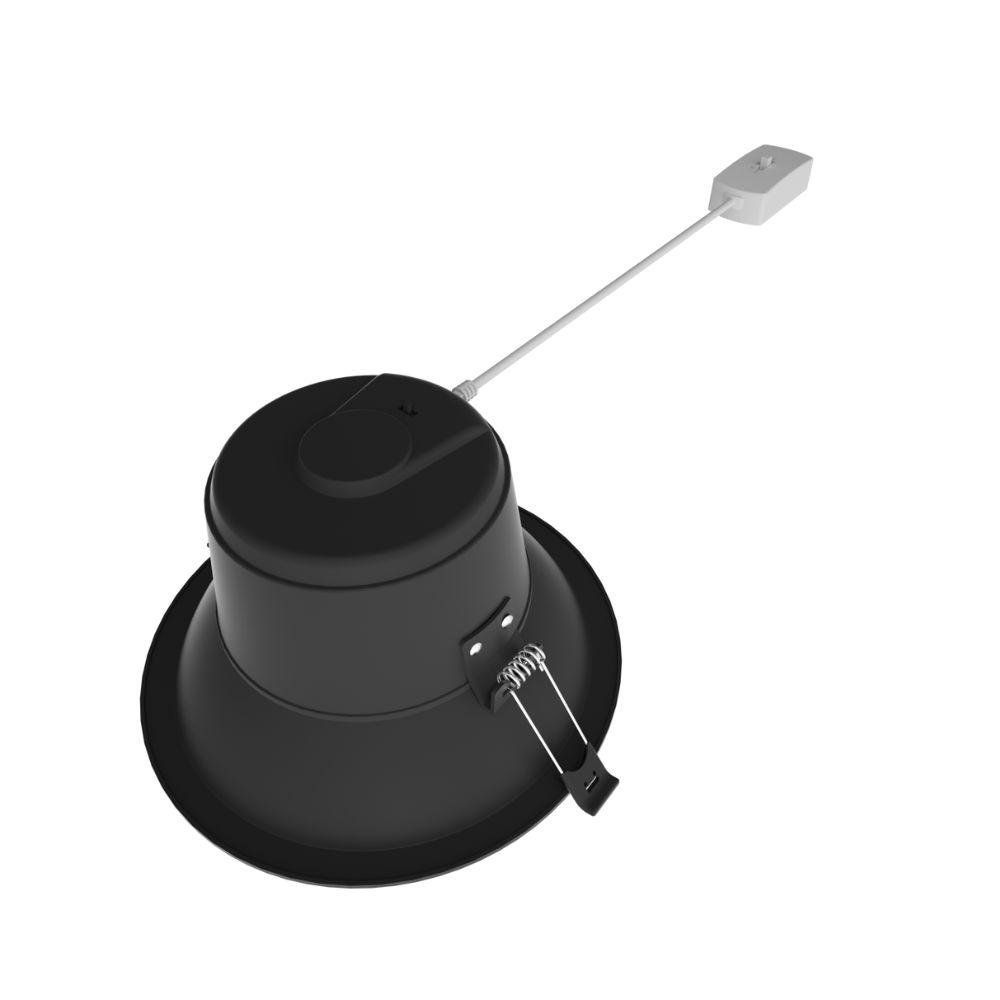

The 5CCT switch is integrated in the cable between fixture and driver location. Before installation, select one of five fixed colour temperatures: 2700K, 3000K, 3500K, 4000K or 5700K. The selected setting is retained during use. This makes the fixture highly versatile and efficient from a stock management perspective—one model covers multiple applications.
The series is available in five sizes (10–24 W) with IP44 front protection. Its low UGR value (<19) also makes it suitable for workspaces. Available in white or black, with optional EU plug or GST connector. Lifespan: 50,000 hours. Comes with 5-year standard warranty.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-downlight-o167mm-black-5-cct-360ma-no-driver-136-507.pdf
Energy labels
Characteristics sheet
136-507-photometric-light-report.pdf
136-507-photometric-light-report-detailed.zip
136-507-eulumdat.zip
