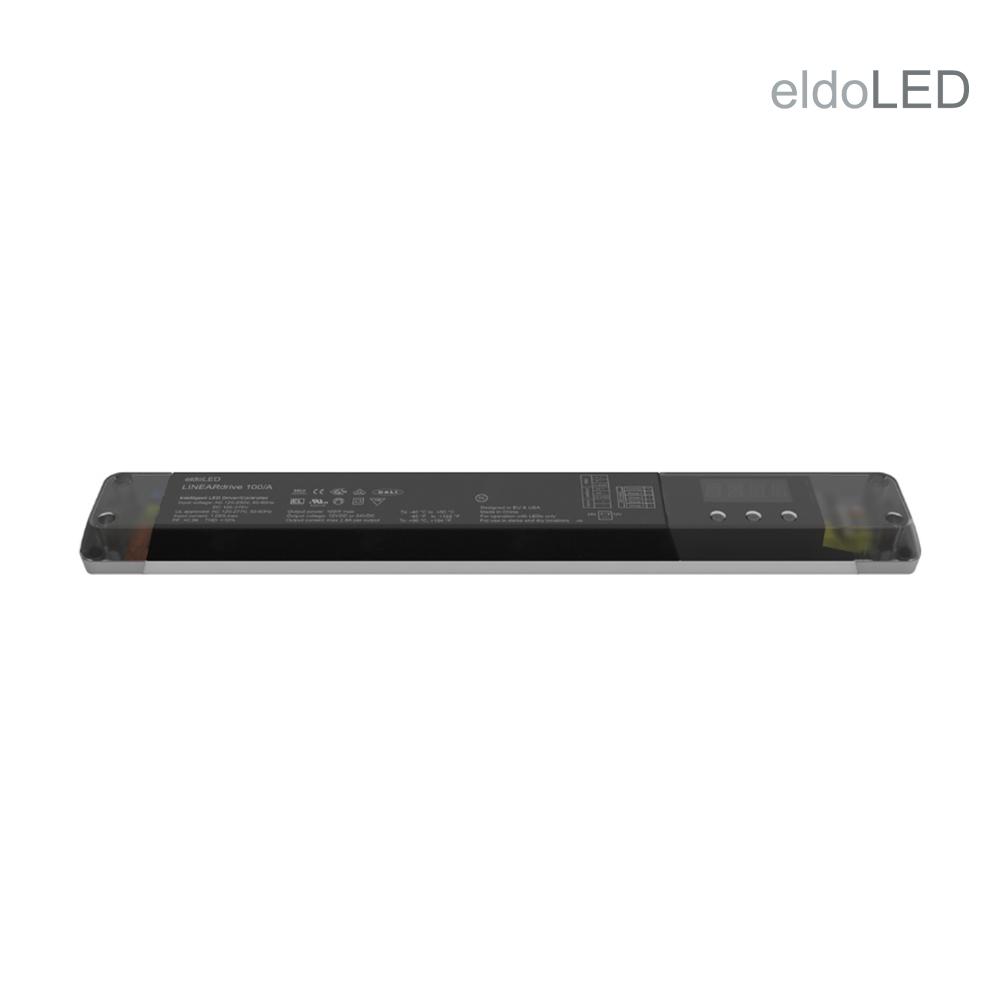

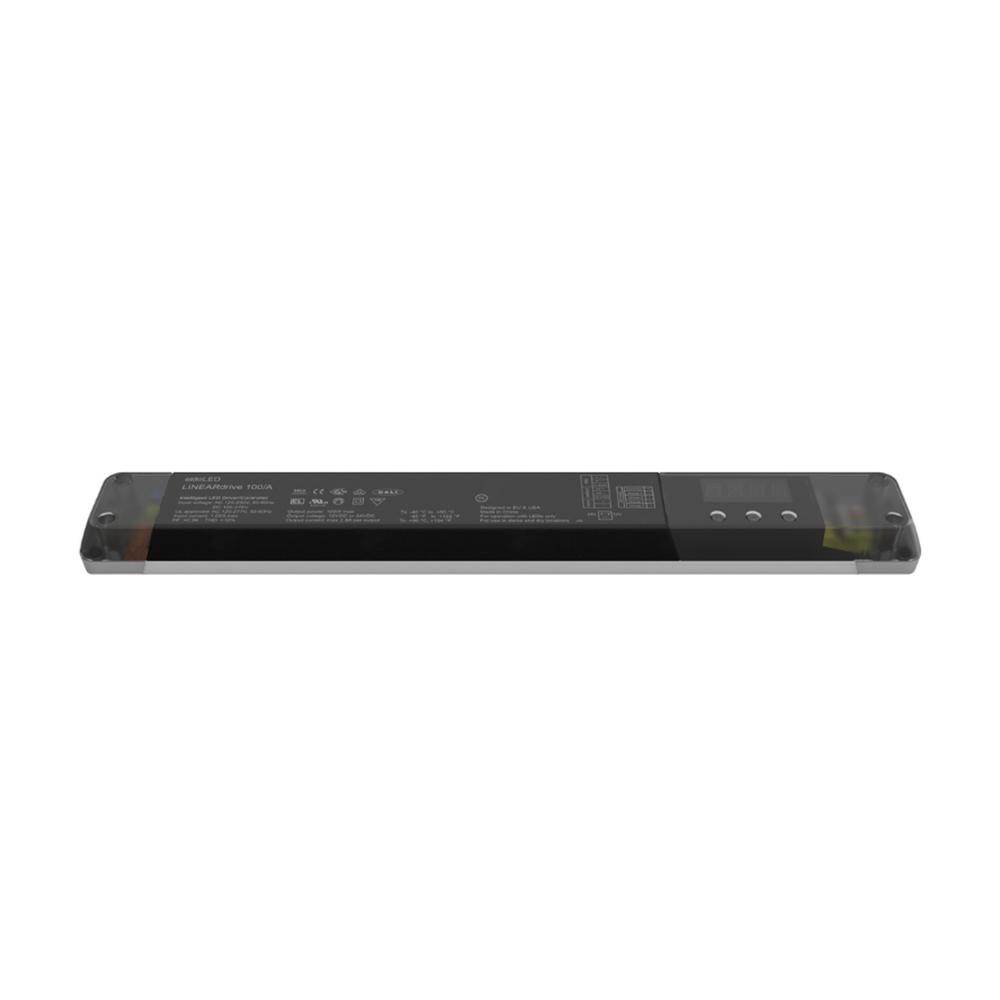

eldoLED | LINEARdrive 100/A | 4CH | 4 out | 100W | DMX/DALI
214-352Professional 4-channel LED controller for 12–24V RGBW, RGB, Tuneable White and single-colour applications. Compatible with DALI and DMX (RDM). Configurable via display or TOOLbox Pro.
Key product features
- Number of colour channels: 4
- Output voltage (V): 12 – 24
- Input voltage (V): 120 – 277
- Max. output current (A): 2.8
- Control type: Constant voltage
- Type of control: DMX/DALI
- Number of zones: 4
Product Name
eldoLED | LINEARdrive 100/A | 4CH | 4 out | 100W | DMX/DALI
Ean
8714984943971
Outer box qty
24st
Model
Dynamic
Housing
Plastic housing
Programmable
Yes
Max. output current
2.8A
Output voltage
12 - 24V
Suitable for outdoor use
No
Degree of protection (IP)
IP20
Length
388mm
Width
42mm
Height
30mm
Number of zones
4
Number of colour channels
4, RGBW
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Input voltage
120 - 277V
Control method
DMX/DALI
DIN-rail mounting
No
Brand
eldoLED
Compatible with Casambi
No
Control type
Constant voltage
Warranty
5 years
Product Name
eldoLED | LINEARdrive 100/A | 4CH | 4 out | 100W | DMX/DALI
Height
30mm
Ean
8714984943971
Number of zones
4
Outer box qty
24st
Number of colour channels
4, RGBW
Model
Dynamic
Suitable for surface mounting
Yes
Housing
Plastic housing
Suitable for built-in mounting
Yes
Programmable
Yes
Input voltage
120 - 277V
Max. output current
2.8A
Control method
DMX/DALI
Output voltage
12 - 24V
DIN-rail mounting
No
Suitable for outdoor use
No
Brand
eldoLED
Degree of protection (IP)
IP20
Compatible with Casambi
No
Length
388mm
Control type
Constant voltage
Width
42mm
Warranty
5 years
The eldoLED LINEARdrive 100/A is a versatile constant voltage LED controller with 4 independent outputs for RGBW, RGB, tuneable white or single-colour applications. Supporting both DMX (RDM) and DALI, the controller integrates easily into professional lighting control systems.
It delivers up to 100 W of total output power via four 12 or 24 V outputs. Each output provides a maximum of 2.8 A, with a shared anode of up to 5 A. HydraDrive technology ensures flicker-free dimming from 100% down to 0.1% – ideal for visually demanding environments.
Settings such as dimming curve, channel mapping, mode and addressing can be configured via the onboard display or with eldoLED’s TOOLbox Pro and FluxTool software.
The controller supports various channel assignments including RGB, RGBW, RGBA and CCWW. Control inputs include DMX-IN, LedSync-OUT, DALI, and an EXT IN port for connecting a potentiometer, 0–10V signal or show selector. Users can choose between logarithmic, linear or square dimming curves depending on the application.
The robust metal housing (388 × 42 × 30 mm) is rated IP20 for dry indoor environments. The controller operates on an input voltage of 120–277V AC or 120–275V DC and features built-in protection against overvoltage, inrush current and incorrect wiring.
More information
More information about this product can be found in the product specifications. For accessories, available options and related items, see related products. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-eldoled-lineardrive-100a-4ch-4-out-100w-dmxdali-214-352.pdf
Characteristics sheet
214-352_technical_datasheet_extended.pdf
