LED spot | 50mm | 700mA | 6,5W | alu | 2700K

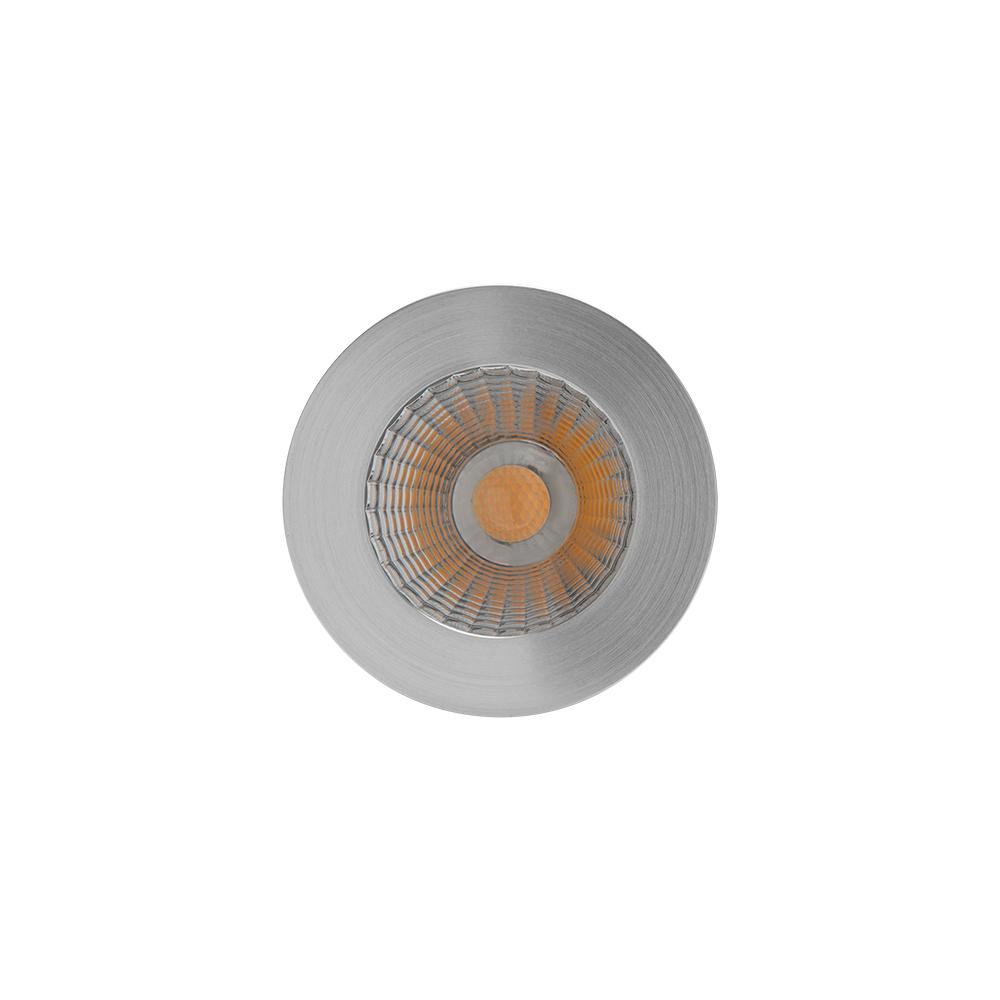

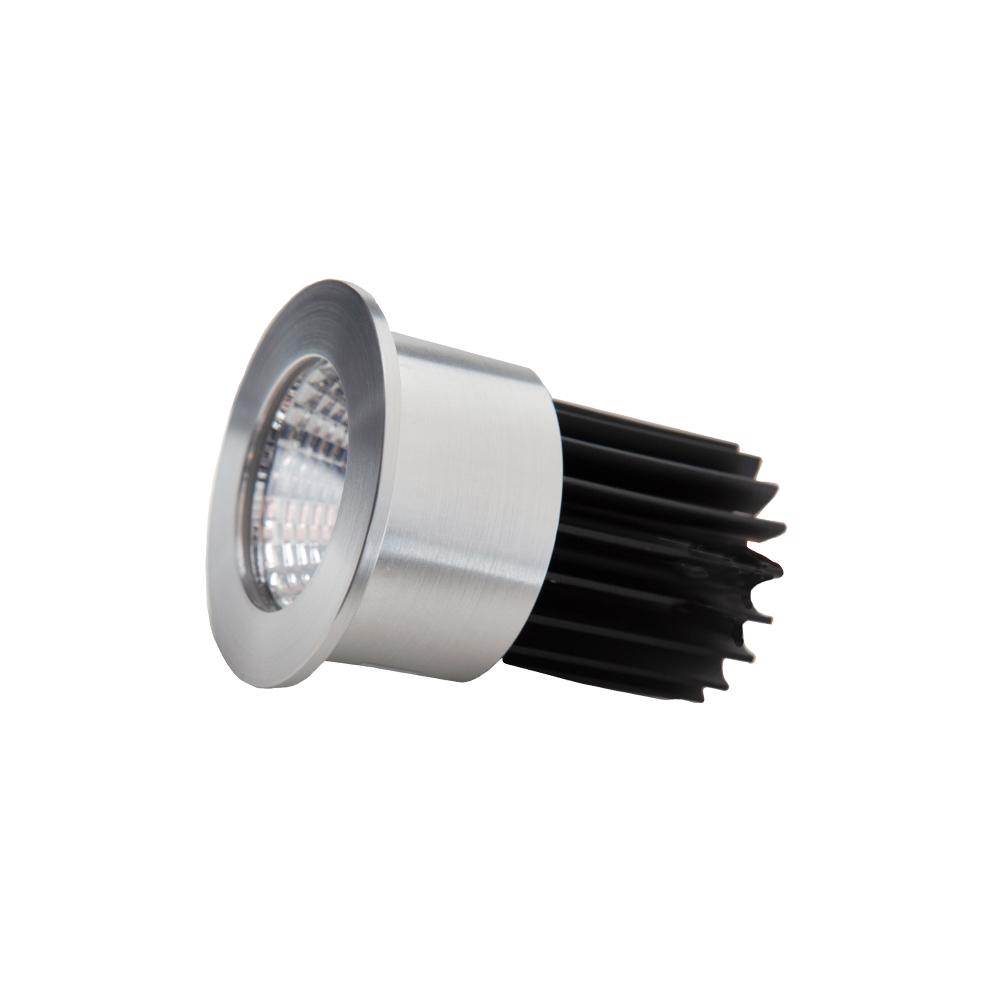

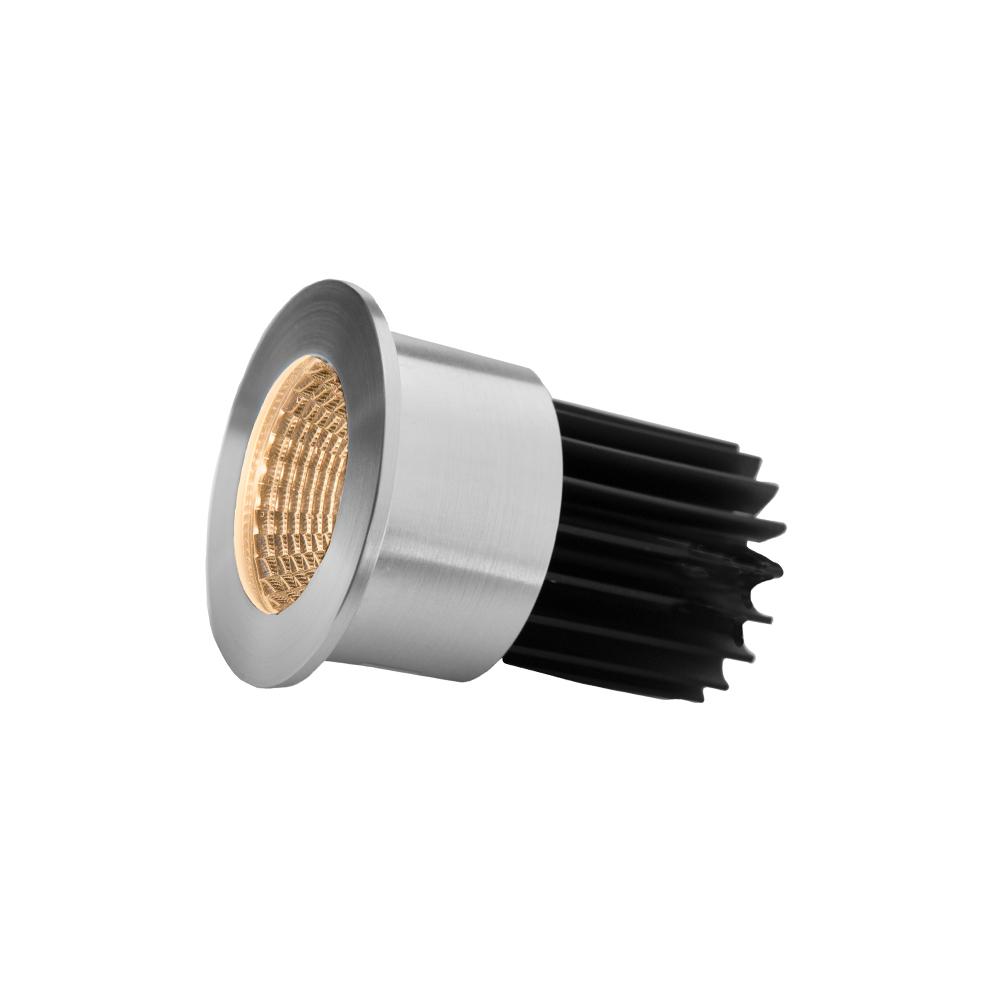

148-163LED spot module Ø50 mm, 6.5W, standalone light source for compact recessed luminaires. 45° beam, available in various light colours and housings for professional use in interiors, retail and hospitality.
Key product features
- Nominal current (mA): 0 - 700
- Max. system power (W): 6.5
- Colour temperature (K): 2700
- Housing colour: Aluminium
- Outer diameter (mm): 49.5
Product Name
LED spot | 50mm | 700mA | 6,5W | alu | 2700K
Ean
8714984920293
Outer box qty
100st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Aluminium
Housing material
Aluminium

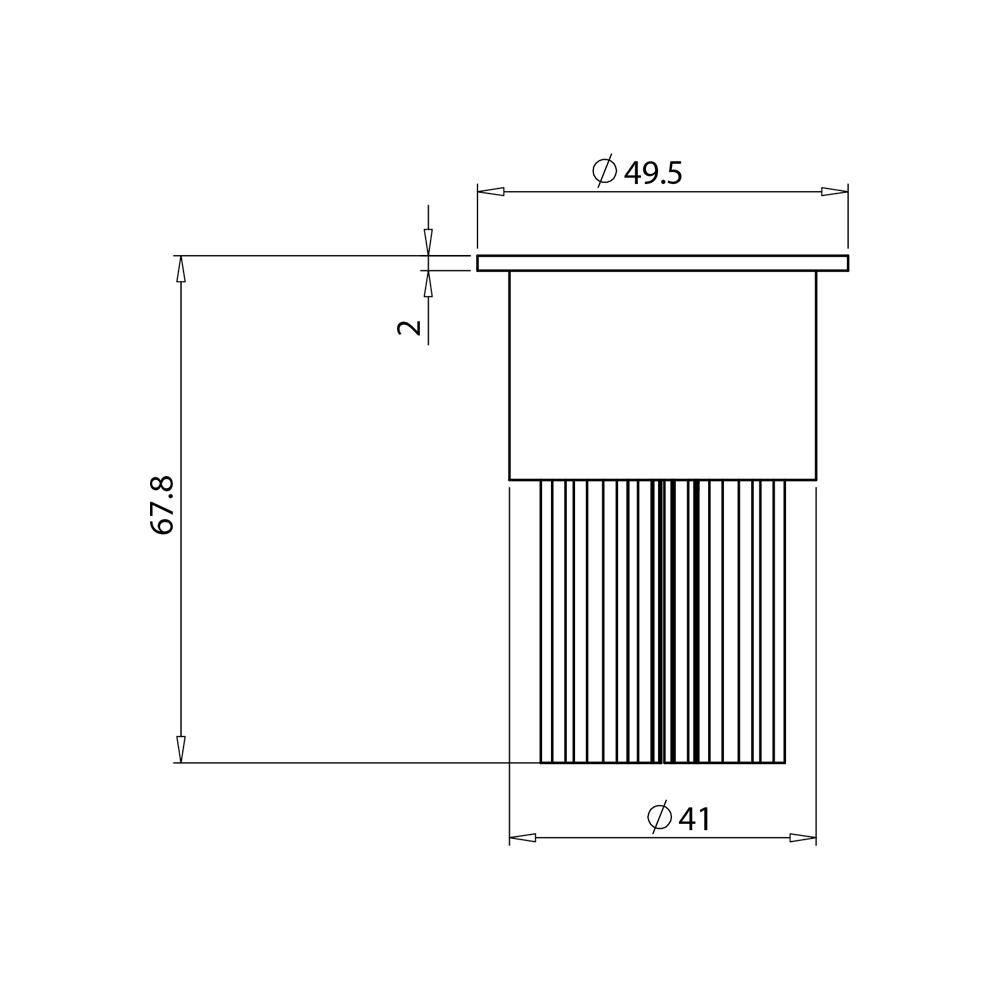

Height/depth
67.8mm
Outer diameter
49.5mm
Built-in diameter
41 - 41mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
No
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
No
Colour temperature
2700K
Colour rendering index CRI
90-100
Luminous flux adjustable
Continuously variable
Light outlet
Direct
Beam angle
41-80° - Wide beam
Beam angle adjustable
No
Voltage type
DC
Nominal voltage
9.4 - 9.4V
Nominal current
0 - 700mA
Number of poles
2
Light source included
Yes, fixed LED
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0.3 - 0.3mm²
Type of control gear
LED operating device current-controlled
With control gear
No
Degree of protection (IP), front side
IP44
Degree of protection (IP), rear side
IP20
Surface protection
Anodised
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
6.5W
Rated luminous flux according to IEC 62722-2- 1
0 - 390lm
Luminaire efficacy
60 - 60lm/W
Power factor
1
Suitable for lamp power
0 - 0W
Surface brushed
Yes
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
not adjustable
Unified Glare Ratio (UGR)
16
Reflector
High-gloss
Warranty
3 years
Control type
Constant current
Product Name
LED spot | 50mm | 700mA | 6,5W | alu | 2700K
Voltage type
DC
Ean
8714984920293
Nominal voltage
9.4 - 9.4V
Outer box qty
100st
Nominal current
0 - 700mA
Lamp type
LED not exchangeable
Number of poles
2
Lamp holder
None
Light source included
Yes, fixed LED
Housing colour
Aluminium
Light distributor
Reflector
Housing material
Aluminium
Light distribution
Symmetric
Height/depth
67.8mm
Connectable conductor cross section
0.3 - 0.3mm²
Outer diameter
49.5mm
Type of control gear
LED operating device current-controlled
Built-in diameter
41 - 41mm
With control gear
No
Suitable for built-in mounting
Yes
Degree of protection (IP), front side
IP44
Suitable for surface mounting
No
Degree of protection (IP), rear side
IP20
Suitable for pedestal/floor mounting
No
Surface protection
Anodised
Suitable for wall mounting
No
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
Yes
Max. system power
6.5W
Suitable for light-track mounting
No
Rated luminous flux according to IEC 62722-2- 1
0 - 390lm
Suitable for clamp-mounting
No
Luminaire efficacy
60 - 60lm/W
With movement sensor
No
Power factor
1
With presence detector
No
Suitable for lamp power
0 - 0W
With light sensor
No
Surface brushed
Yes
Colour of light
White
Type of wiring
Ending
Colour consistency (McAdam ellipse)
SDCM3
Emergency power supply system
None
Colour of light adjustable
No
Emergency function monitoring system
None
Colour temperature
2700K
Adjustability
not adjustable
Colour rendering index CRI
90-100
Unified Glare Ratio (UGR)
16
Luminous flux adjustable
Continuously variable
Reflector
High-gloss
Light outlet
Direct
Warranty
3 years
Beam angle
41-80° - Wide beam
Control type
Constant current
Beam angle adjustable
No
This powerful Ø50 mm LED module is designed as a standalone light source for installation in compact fixtures. The 45° beam angle delivers focused illumination without glare. Perfect for accent lighting in residential and commercial settings.
Its durable aluminium housing is available in white, black or aluminium finish. Ensures optimal heat dissipation and a professional appearance. Offered in 2700K or 3000K, the module delivers warm, high-quality light suitable for both atmospheric and functional use.
Applications include recessed or surface-mounted fixtures in shops, hospitality areas, showcases or modern interiors. The module easily integrates into matching housings for a flexible total lighting solution.
Optional distribution blocks and extension cables allow plug-and-play connection of multiple modules in series, ensuring quick and structured installation.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-spot-50mm-700ma-65w-alu-2700k-148-163.pdf
Energy labels
Schema
20220908103227228_1814488707.pdf
Manual
20220908103204274_1824153805.pdf
Characteristics sheet
148-163-photometric-light-report.pdf
148-163.ldt
