Refl downl || black | Ø145mm | 60° | 3-CCT | 6~15W | EU plug
136-452This downlight minimizes glare with a mirror reflector and offers adjustable light Colour and Max. system power. Perfect for bright, comfortable lighting in commercial and residential settings.
Key product features:
- Max. system power (W): 6 - 15
- Colour temperature (K): 3000 - 5700
- Housing colour: Black
- Outer diameter (mm): 145
- Built-in diameter (mm): 120 - 140
- Connection type: Plug
- Unified Glare Ratio (UGR): 19
Product Name
Refl downl || black | Ø145mm | 60° | 3-CCT | 6~15W | EU plug
Ean
8714984948174
Outer box qty
18st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Black
Housing material
Aluminium
Material cover
Plastic, transparent
Connection type
EU plug

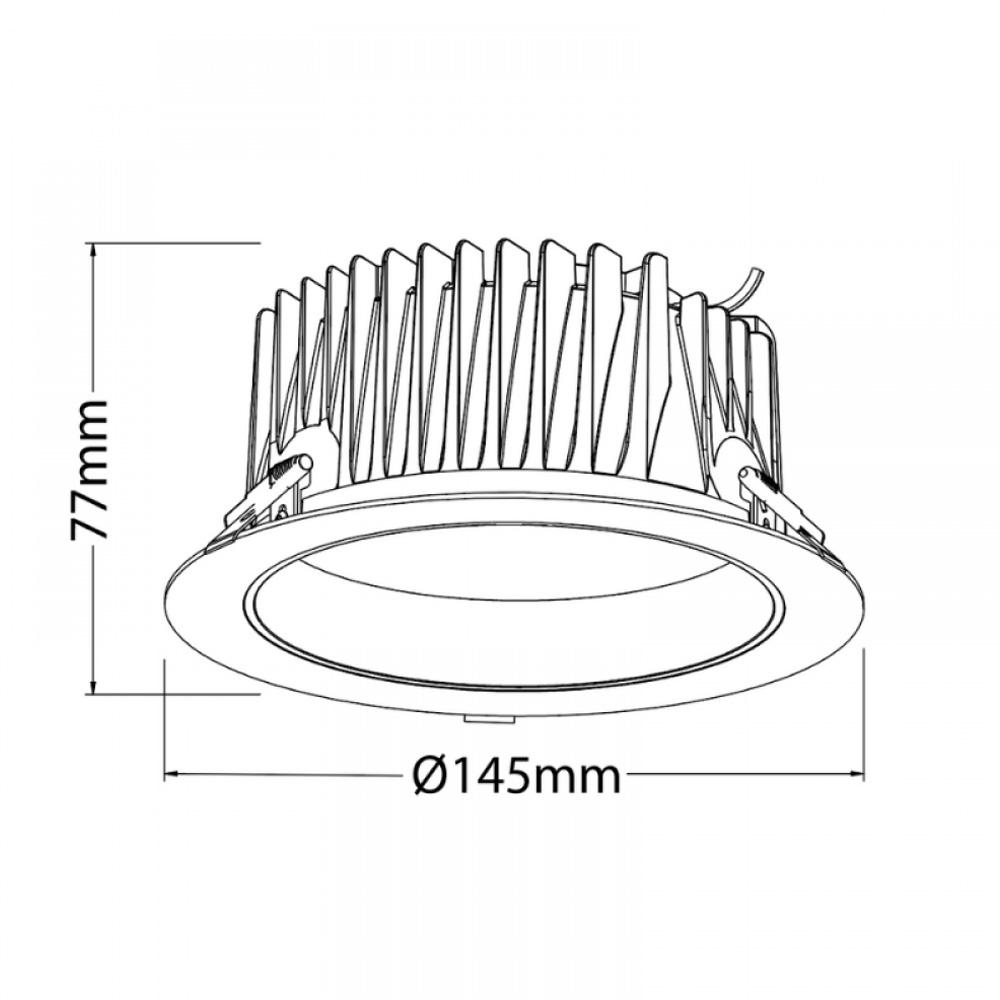

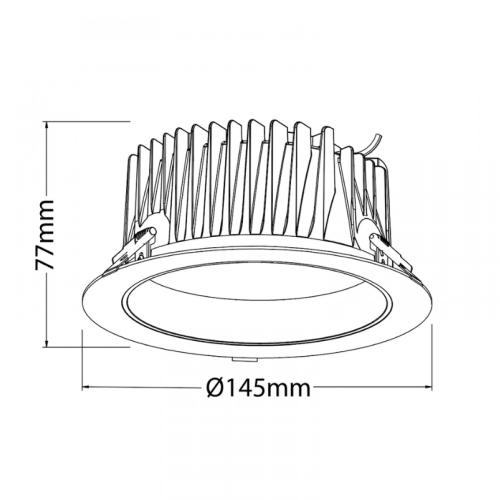

Height/depth
77mm
Outer diameter
145mm
Built-in diameter
120 - 140mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
Positions
Reflector colour
Silver
Colour temperature
3000 - 4000 - 5700K
Colour rendering index CRI
80-89
Luminous flux adjustable
No
Light outlet
Direct
Beam angle
41-80° - Wide beam
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
220 - 240V
Nominal current
62 - 62mA
Number of poles
2
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0.75 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
Yes
With control gear
Yes
Degree of protection (IP), front side
IP44
Degree of protection (IP), rear side
IP20
Surface protection
Powder coating
Impact strength
IK02
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
15W
Rated luminous flux according to IEC 62722-2- 1
540 - 1350lm
Luminaire efficacy
90 - 90lm/W
Power factor
0.96
Suitable for lamp power
0 - 0W
Dimming method
Non-dimmable
Surface brushed
No
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
not adjustable
Unified Glare Ratio (UGR)
17.7
Reflector
High-gloss
Warranty
5 years
Product Name
Refl downl || black | Ø145mm | 60° | 3-CCT | 6~15W | EU plug
Beam angle adjustable
No
Ean
8714984948174
Voltage type
AC
Outer box qty
18st
Nominal voltage
220 - 240V
Lamp type
LED not exchangeable
Nominal current
62 - 62mA
Lamp holder
None
Number of poles
2
Housing colour
Black
Light distributor
Reflector
Housing material
Aluminium
Light distribution
Symmetric
Material cover
Plastic, transparent
Connectable conductor cross section
0.75 - 2.5mm²
Connection type
EU plug
Type of control gear
LED operating device current-controlled
Height/depth
77mm
Exchangeable control gear
Yes
Outer diameter
145mm
With control gear
Yes
Built-in diameter
120 - 140mm
Degree of protection (IP), front side
IP44
Suitable for built-in mounting
Yes
Degree of protection (IP), rear side
IP20
Suitable for surface mounting
No
Surface protection
Powder coating
Suitable for pedestal/floor mounting
No
Impact strength
IK02
Suitable for wall mounting
No
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
Yes
Max. system power
15W
Suitable for light-track mounting
No
Rated luminous flux according to IEC 62722-2- 1
540 - 1350lm
Suitable for clamp-mounting
Yes
Luminaire efficacy
90 - 90lm/W
With movement sensor
No
Power factor
0.96
With presence detector
No
Suitable for lamp power
0 - 0W
With light sensor
No
Dimming method
Non-dimmable
Colour of light
White
Surface brushed
No
Colour consistency (McAdam ellipse)
SDCM3
Type of wiring
Ending
Colour of light adjustable
Positions
Emergency power supply system
None
Reflector colour
Silver
Emergency function monitoring system
None
Colour temperature
3000 - 4000 - 5700K
Adjustability
not adjustable
Colour rendering index CRI
80-89
Unified Glare Ratio (UGR)
17.7
Luminous flux adjustable
No
Reflector
High-gloss
Light outlet
Direct
Warranty
5 years
Beam angle
41-80° - Wide beam
The mirror reflector ensures optimal light distribution with minimal glare (UGR <19). Part of a series with nearly 40 models in various sizes and wattages, this downlight offers versatile solutions. Installation is quick and straightforward with europlug or GST18i3 connector options.
More information and advice
Detailed information about this product, including related accessories, can be found in the product specifications. For questions or tailored advice, the lighting experts at Tronix Lighting are available at sales@tronixlighting.com or by phone at +31 413 330 380.
Datasheet
Datasheet-refl-downl-black-o145mm-60-3-cct-615w-eu-plug-136-452.pdf
Energy labels
Characteristics sheet
136-452-photometric-light-report.pdf
136-452-photometric-light-report-detailed.zip
136-452-eulumdat.zip
