Spot | 82x82mm | square | white | 5/7W | 3CCT/DTW

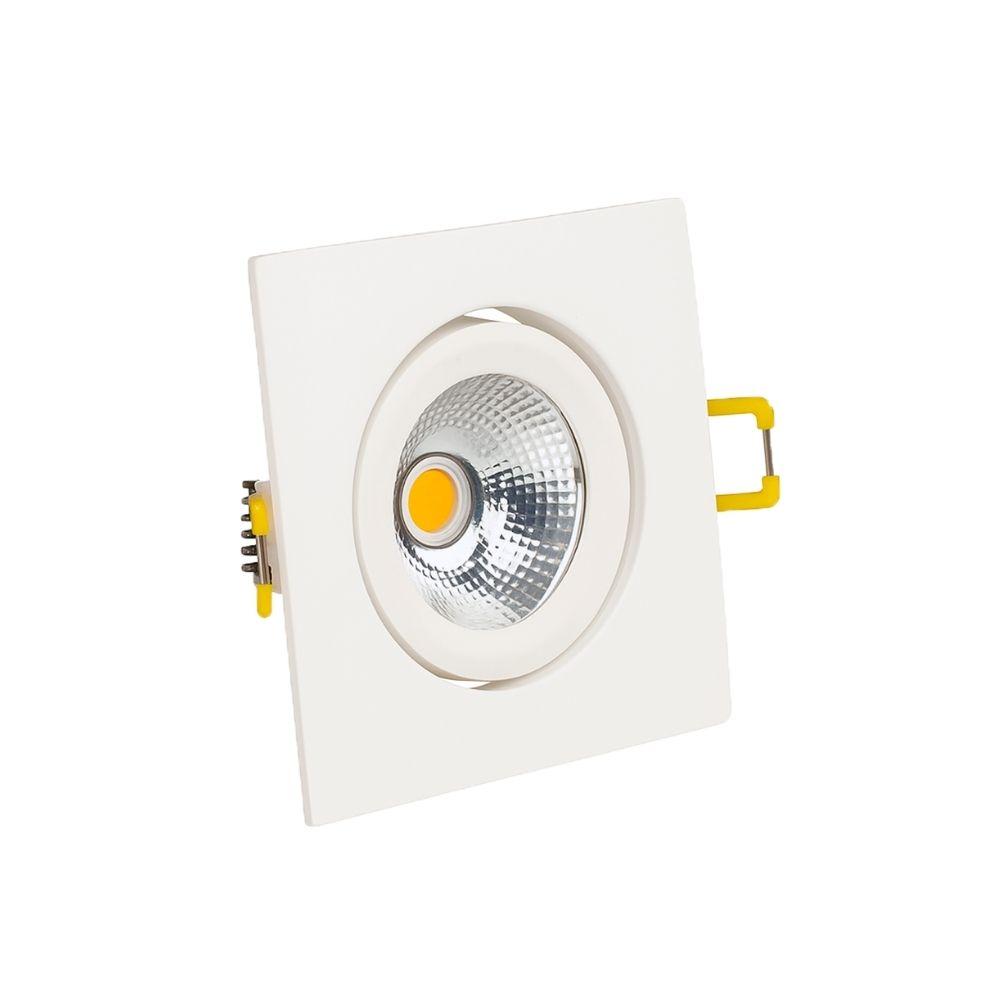

136-820This square recessed LED spotlight of 82 × 82 mm combines a clean design with high light quality. The LED downlight offers selectable 5 or 7 W output and 3CCT/DTW switching between warm and neutral white light for versatile applications.
Key product features
- Nominal voltage (V): 220–240
- Max. system power (W): 7
- Height/depth (mm): 26
- Dimming phase cut-off (trailing edge): Yes
- Built-in diameter (mm): 68–75
- Colour temperature: 2700 / 3000 / 4000K / DTW
Product Name
Spot | 82x82mm | square | white | 5/7W | 3CCT/DTW
Ean
8714984951952
Outer box qty
100st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
White
Housing material
Aluminium
Material cover
Glass transparent
Connection type
GST18i3
Length
82mm
Width
82mm
Height/depth
26mm
Built-in diameter
68 - 75mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
Positions
Reflector colour
Silver
Colour temperature
2700 – 3000 – 4000K – DTW
Colour rendering index CRI
90-100
Luminous flux adjustable
Positions
Light outlet
Direct
Beam angle
21-40° - Medium beam
Beam angle adjustable
No
Voltage type
AC
Nominal voltage
220 - 240V
Nominal current
22 - 30mA
Number of poles
2
Light source included
Yes, fixed LED
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0.5 - 2.5mm²
Type of control gear
LED operating device current-controlled
Exchangeable control gear
Yes
With control gear
Yes
Degree of protection (IP), front side
IP54
Degree of protection (IP), rear side
IP20
Surface protection
Powder coating
Impact strength
IK02
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
7W
Rated luminous flux according to IEC 62722-2- 1
420 - 420lm
Luminaire efficacy
70 - 70lm/W
Power factor
0.92
Suitable for lamp power
0 - 0W
Dimming method
Trailing edge dimming
Surface brushed
No
Type of wiring
Suitable for loop-through wiring
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
Rotatable
Unified Glare Ratio (UGR)
26
Reflector
High-gloss
Warranty
5 years
Control type
Constant voltage
Product Name
Spot | 82x82mm | square | white | 5/7W | 3CCT/DTW
Beam angle adjustable
No
Ean
8714984951952
Voltage type
AC
Outer box qty
100st
Nominal voltage
220 - 240V
Lamp type
LED not exchangeable
Nominal current
22 - 30mA
Lamp holder
None
Number of poles
2
Housing colour
White
Light source included
Yes, fixed LED
Housing material
Aluminium
Light distributor
Reflector
Material cover
Glass transparent
Light distribution
Symmetric
Connection type
GST18i3
Connectable conductor cross section
0.5 - 2.5mm²
Length
82mm
Type of control gear
LED operating device current-controlled
Width
82mm
Exchangeable control gear
Yes
Height/depth
26mm
With control gear
Yes
Built-in diameter
68 - 75mm
Degree of protection (IP), front side
IP54
Suitable for built-in mounting
Yes
Degree of protection (IP), rear side
IP20
Suitable for surface mounting
No
Surface protection
Powder coating
Suitable for pedestal/floor mounting
No
Impact strength
IK02
Suitable for wall mounting
No
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
Yes
Max. system power
7W
Suitable for light-track mounting
No
Rated luminous flux according to IEC 62722-2- 1
420 - 420lm
Suitable for clamp-mounting
Yes
Luminaire efficacy
70 - 70lm/W
With movement sensor
No
Power factor
0.92
With presence detector
No
Suitable for lamp power
0 - 0W
With light sensor
No
Dimming method
Trailing edge dimming
Colour of light
White
Surface brushed
No
Colour consistency (McAdam ellipse)
SDCM3
Type of wiring
Suitable for loop-through wiring
Colour of light adjustable
Positions
Emergency power supply system
None
Reflector colour
Silver
Emergency function monitoring system
None
Colour temperature
2700 – 3000 – 4000K – DTW
Adjustability
Rotatable
Colour rendering index CRI
90-100
Unified Glare Ratio (UGR)
26
Luminous flux adjustable
Positions
Reflector
High-gloss
Light outlet
Direct
Warranty
5 years
Beam angle
21-40° - Medium beam
Control type
Constant voltage

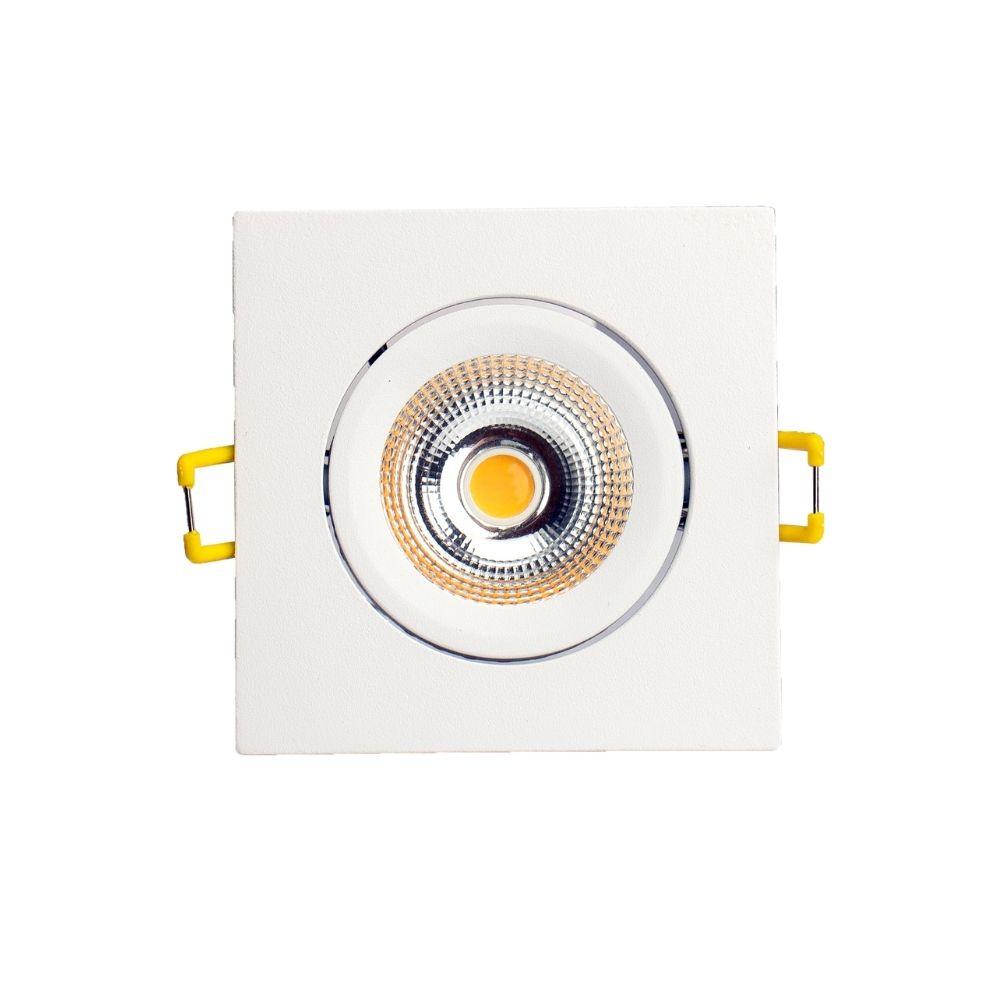

The luminaire features a white finish and is equipped with a reflector that provides a uniform light beam with minimal glare. Thanks to its high light quality, the spotlight is suitable for residential and professional applications where light quality is essential. With an installation depth of just 26 mm, it is suitable for ceilings with limited installation space.
Connection is via the integrated terminal block with loop-through option. The terminal can be unclipped for connection via a GST18/3 plug. The front side is rated IP54 after installation, providing protection against dust and splashing water.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, please contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-spot-82x82mm-square-white-57w-3cctdtw-136-820.pdf
Energy labels
Characteristics sheet
136-820-photometric-light-report.zip
136-820-eulumdat.zip
Manual
Manual_136-820_821.pdf
