Downlight surface mounted || white | 18W | 3-CCT | dim

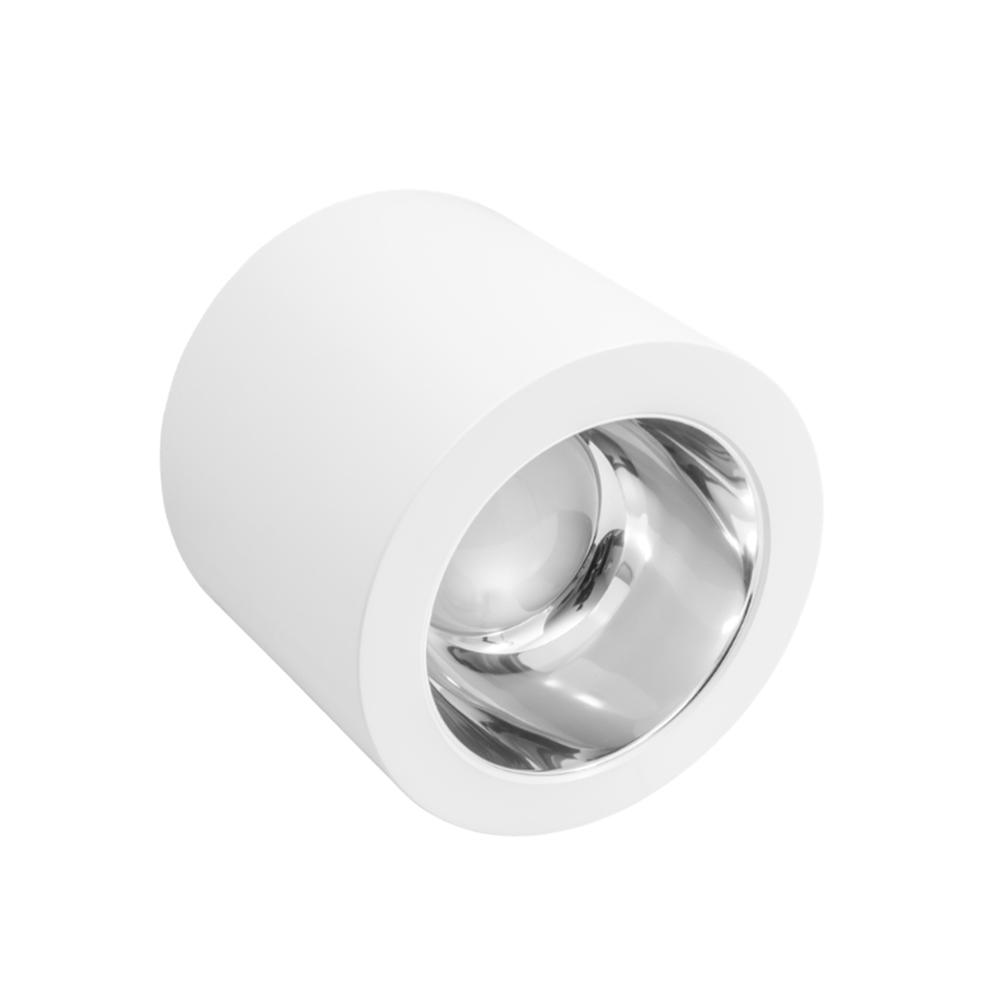

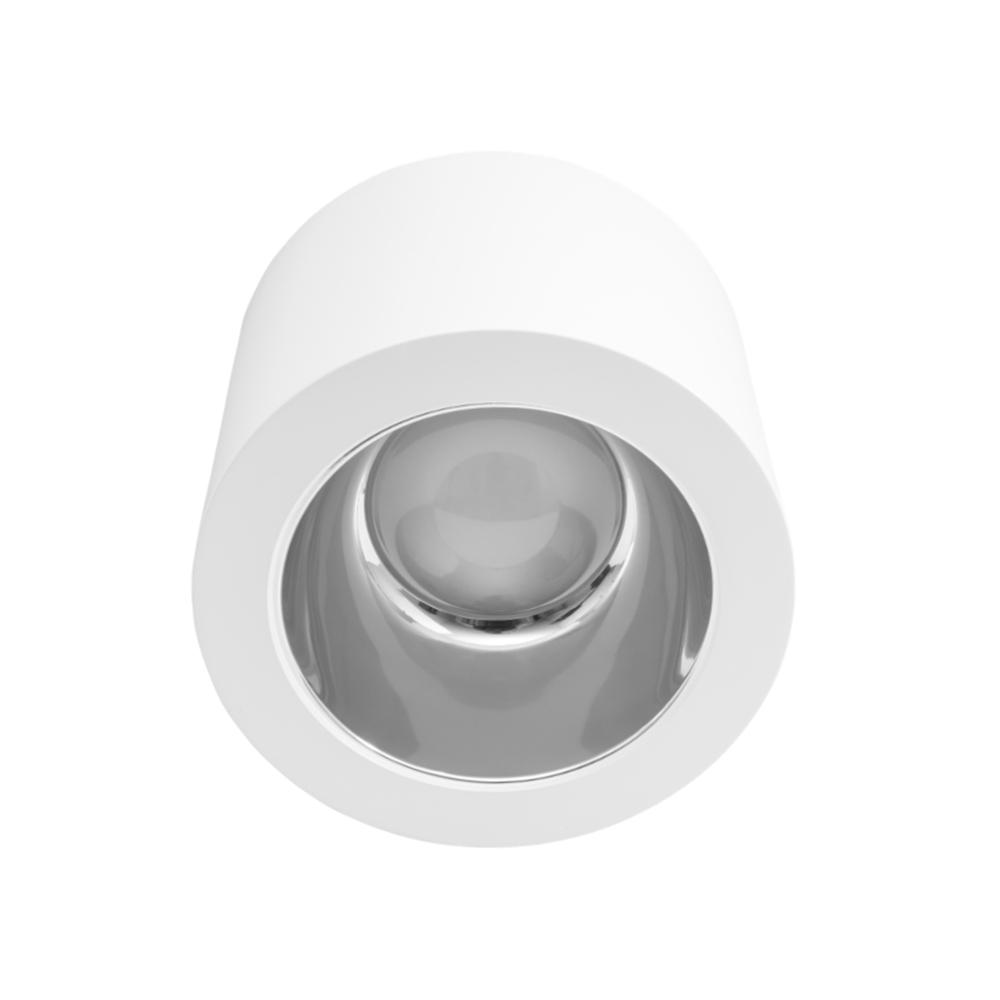

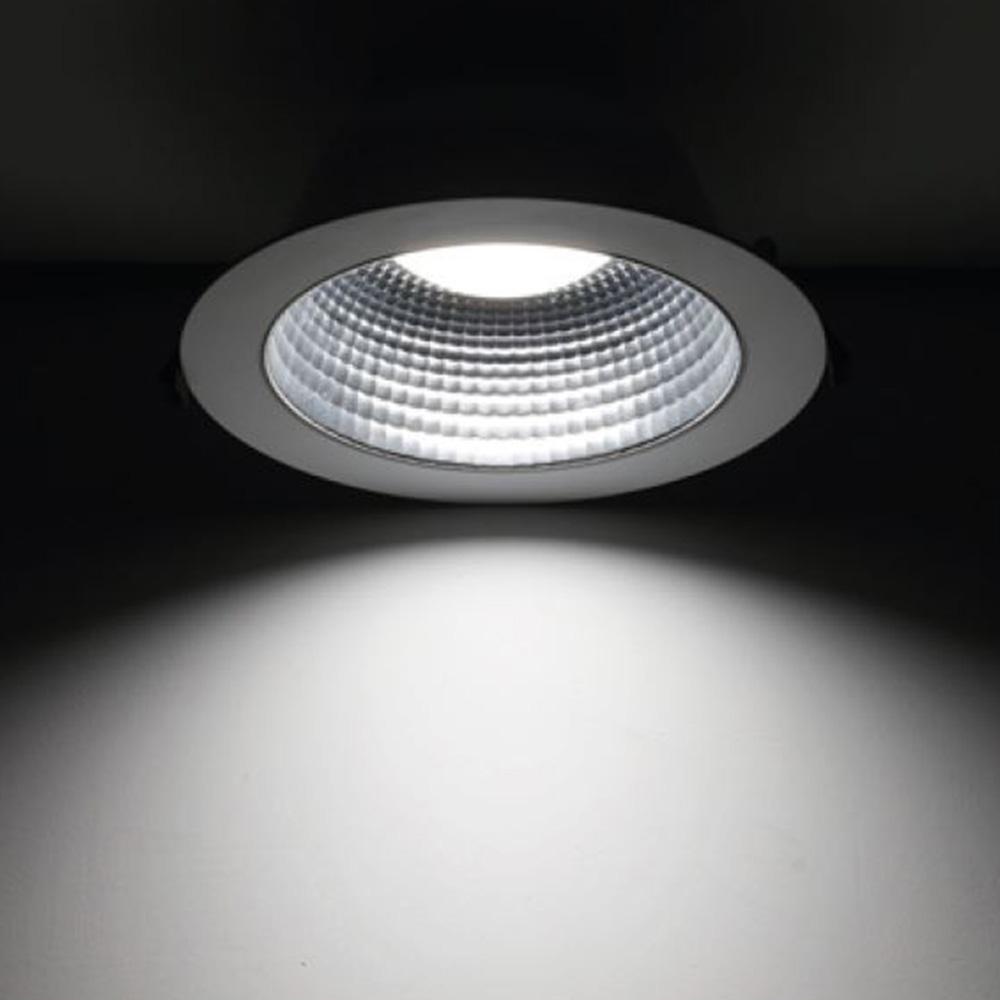

136-098Surface-mounted downlight offering the performance of a recessed fixture with the convenience of surface installation. Sleek design, adjustable Colour temperature (3000K, 4000K, 5700K), and dimmable down to approximately 8%. Suitable for a wide range of lighting needs.
Key product features:
- Suitable for surface mounting: Yes
- Colour temperature (K): 3000 - 5700
- Housing colour: White

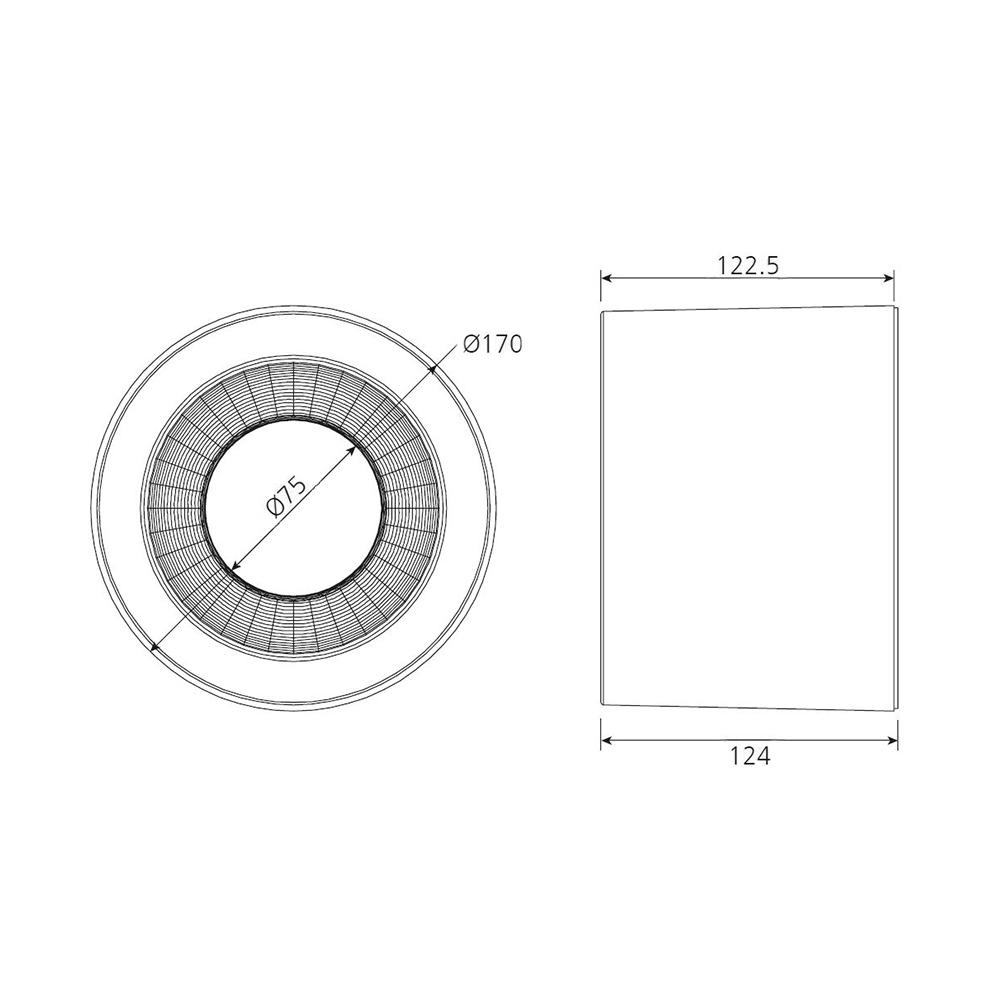

- Height/depth (mm): 124
- Outer diameter (mm): 170
- Max. system power (W): 18
- Dimmable: Yes
Product Name
Downlight surface mounted || white | 18W | 3-CCT | dim
Ean
8714984933200
Outer box qty
12st
Lamp type
LED not exchangeable
Housing material
Plastic
Housing colour
White
Material cover
Plastic matt/satinized
Suitable for emergency lighting
No
Nominal current
76 - 76mA
Voltage type
AC
Type of control gear
LED operating device current-controlled
With control gear
Yes
Outer diameter
170mm
Constant light output (CLO)
No
Type of grid
None
Nominal voltage
220 - 240V
Height/depth
124mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming phase cut-off (trailing edge)
Yes
With movement sensor
No
With presence detector
No
Impact strength
IK08
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
No
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Dimming RF
No
Dimming Zigbee
No
Light distributor
Reflector
Surface protection housing
Untreated
Colour consistency (McAdam ellipse)
SDCM6
Rated lifetime L70/B50 at 25 °C
50000h
Colour of light adjustable
Positions
Luminous flux adjustable
Continuously variable
Max. system power
18W
Beam angle adjustable
No
Power factor
0.95
Type of wiring
Ending
Number of poles
3
Compatible with Casambi
No
Luminaire efficacy
90 - 90lm/W
Dimmable
Yes
Rated luminous flux according to IEC 62722-2- 1
1620 - 1620lm
Emergency power supply system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
No
Suitable for suspended mounting
No
Suitable for workplace according to EN 12464-1
No
Unified Glare Ratio (UGR)
21.4
Degree of protection (IP), rear side
IP20
With mounting material
Yes
Colour temperature
3000 - 4000 - 5700K
With connection cord and plug
No
Warranty
5 years
Product Name
Downlight surface mounted || white | 18W | 3-CCT | dim
Beam angle
> 80° - Extreme wide beam
Ean
8714984933200
Light outlet
Direct
Outer box qty
12st
Dimming RF
No
Lamp type
LED not exchangeable
Dimming Zigbee
No
Housing material
Plastic
Light distributor
Reflector
Housing colour
White
Surface protection housing
Untreated
Material cover
Plastic matt/satinized
Colour consistency (McAdam ellipse)
SDCM6
Suitable for emergency lighting
No
Rated lifetime L70/B50 at 25 °C
50000h
Nominal current
76 - 76mA
Colour of light adjustable
Positions
Voltage type
AC
Luminous flux adjustable
Continuously variable
Type of control gear
LED operating device current-controlled
Max. system power
18W
With control gear
Yes
Beam angle adjustable
No
Outer diameter
170mm
Power factor
0.95
Constant light output (CLO)
No
Type of wiring
Ending
Type of grid
None
Number of poles
3
Nominal voltage
220 - 240V
Compatible with Casambi
No
Height/depth
124mm
Luminaire efficacy
90 - 90lm/W
Colour of light
White
Dimmable
Yes
Colour rendering index CRI
80-89
Rated luminous flux according to IEC 62722-2- 1
1620 - 1620lm
Exchangeable control gear
No
Emergency power supply system
None
Dimming 0-10 V
No
Suitable for ceiling mounting
Yes
Dimming 1-10 V
No
Connectable conductor cross section
0.75 - 0.75mm²
Dimming DALI
No
Suitable for wall mounting
No
Dimming phase cut-off (trailing edge)
Yes
Suitable for suspended mounting
No
With movement sensor
No
Suitable for workplace according to EN 12464-1
No
With presence detector
No
Unified Glare Ratio (UGR)
21.4
Impact strength
IK08
Degree of protection (IP), rear side
IP20
With light sensor
No
With mounting material
Yes
Suitable for surface mounting
Yes
Colour temperature
3000 - 4000 - 5700K
Suitable for built-in mounting
No
With connection cord and plug
No
Light distribution
Symmetric
Warranty
5 years

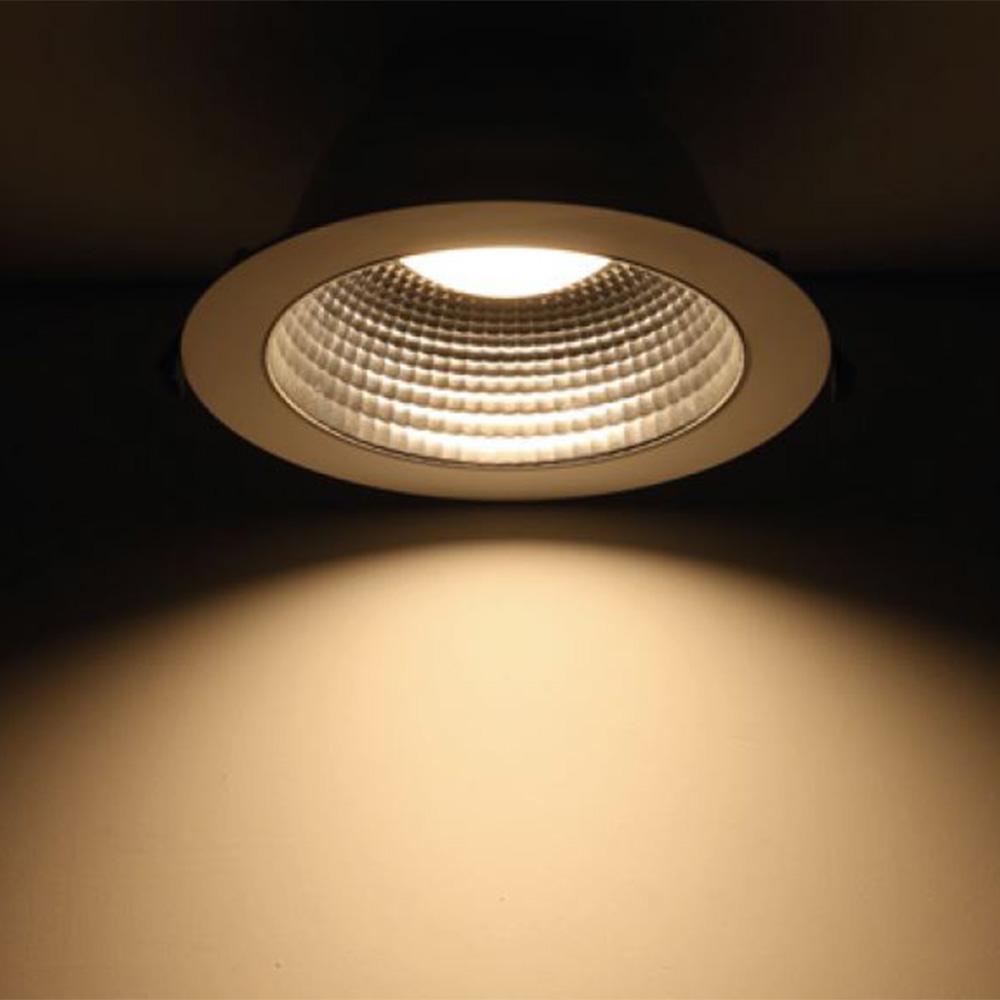

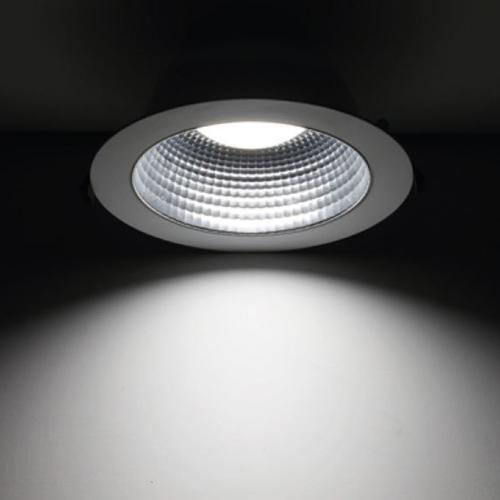

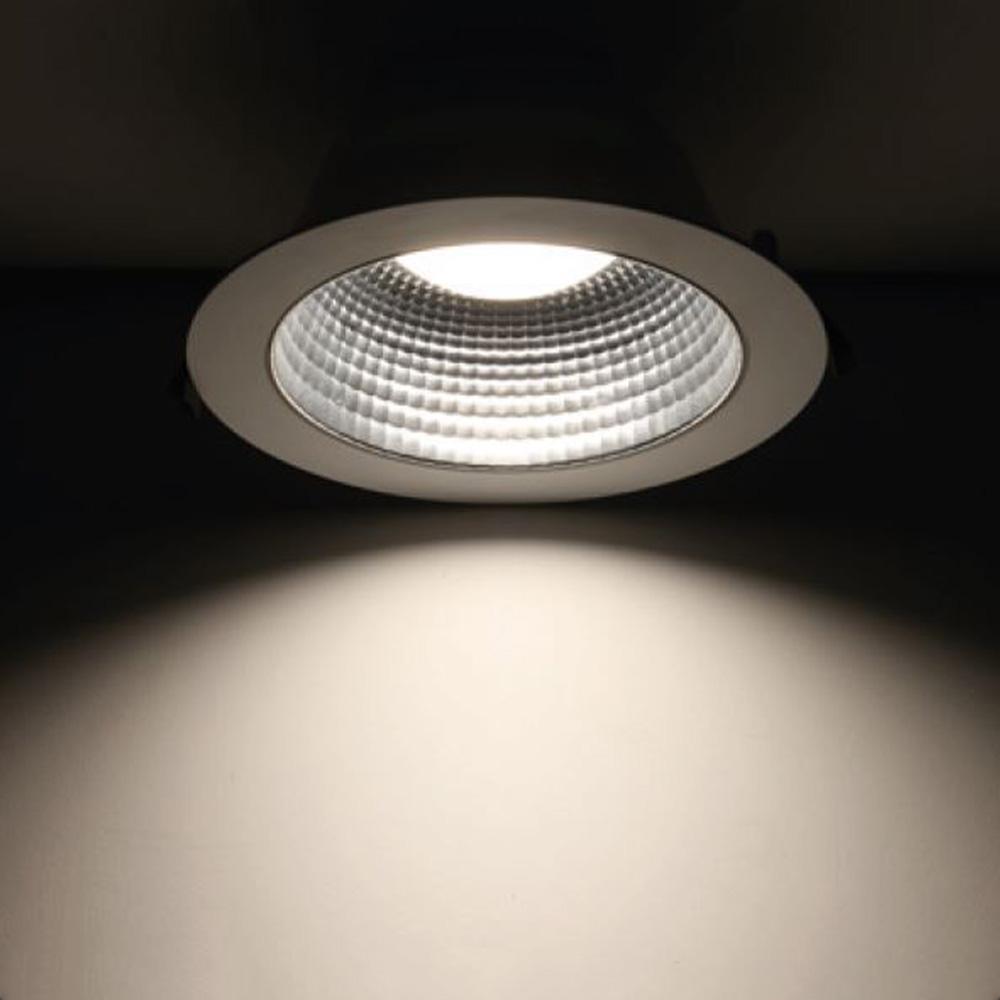

The adjustable color temperature of this 3-CCT fixture allows selection between 3000K (warm white), 4000K (neutral white), and 5700K (cool white), ensuring the lighting adapts to the function and ambiance of any space. The dimming capability down to approximately 8% offers additional flexibility in light intensity and energy management.
This downlight combines the benefits of recessed lighting with the ease of surface mounting. Available in white and black, with power options of 13W or 18W, and diameters of 143 mm or 170 mm. Heights of 112 mm or 124 mm ensure a suitable model for every project.
Additional Information
More details about this product can be found in the specifications. For accessories, available options, and related products, see the related items section. For inquiries or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-downlight-surface-mounted-white-18w-3-cct-dim-136-098.pdf
Energy labels
Manual
136-098_Manual_NL.pdf
136-098_Manual_EN.pdf
Characteristics sheet
136-098-photometric-light-report.pdf
136-098-photometric-light-report-detailed.zip
136-098-eulumdat.zip
