LED spot | cabinet | 700mA | 2,5W | alu | 3000K

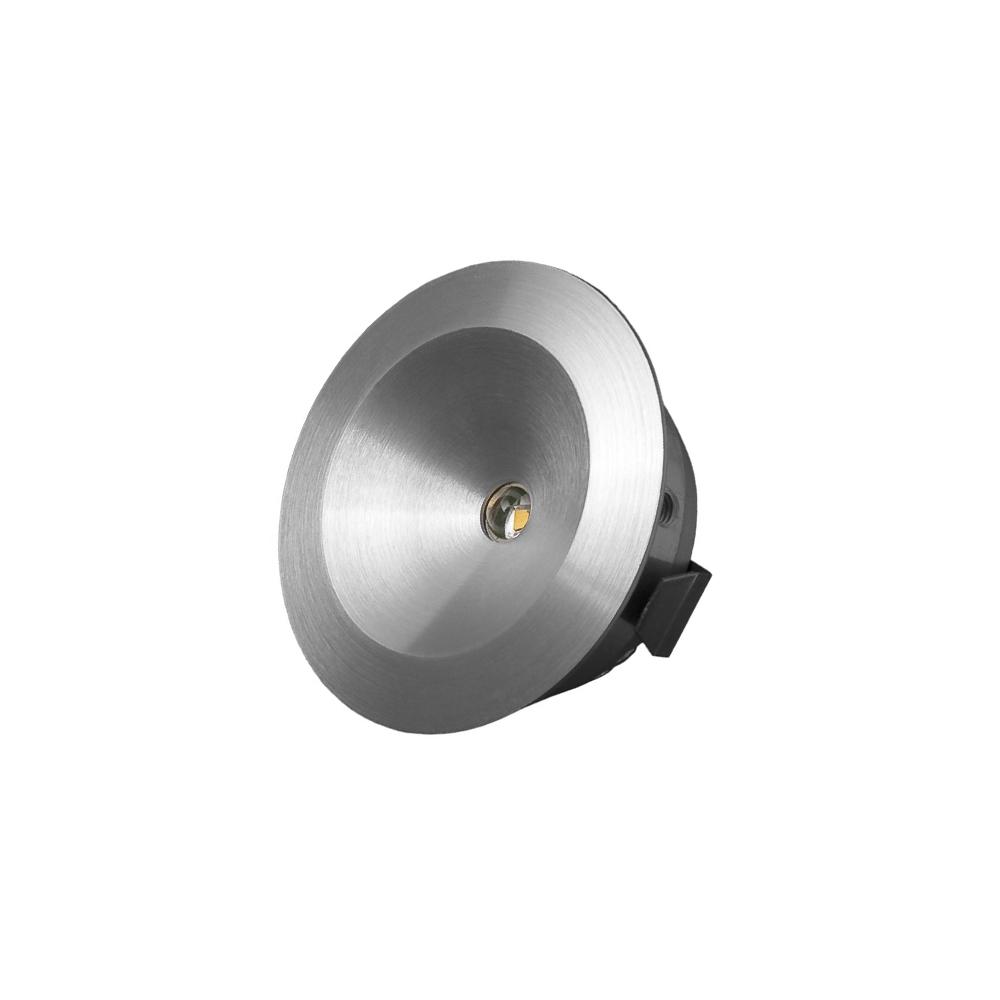

148-128Ultra-compact 2.5W LED cabinet spot with a 90° beam. Specifically designed for shallow built-in use in furniture, displays or showcase applications. Available in various light colours and Housing colours for seamless integration.
Key product features
- Nominal current (mA): 0 - 700
- Max. system power (W): 2.5
- Colour temperature (K): 3000
- Housing colour: Aluminium
- Built-in height (mm): 16.5
- Built-in diameter (mm): 34 – 36.5
Product Name
LED spot | cabinet | 700mA | 2,5W | alu | 3000K
Ean
8714984903128
Outer box qty
100st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Aluminium
Housing material
Aluminium

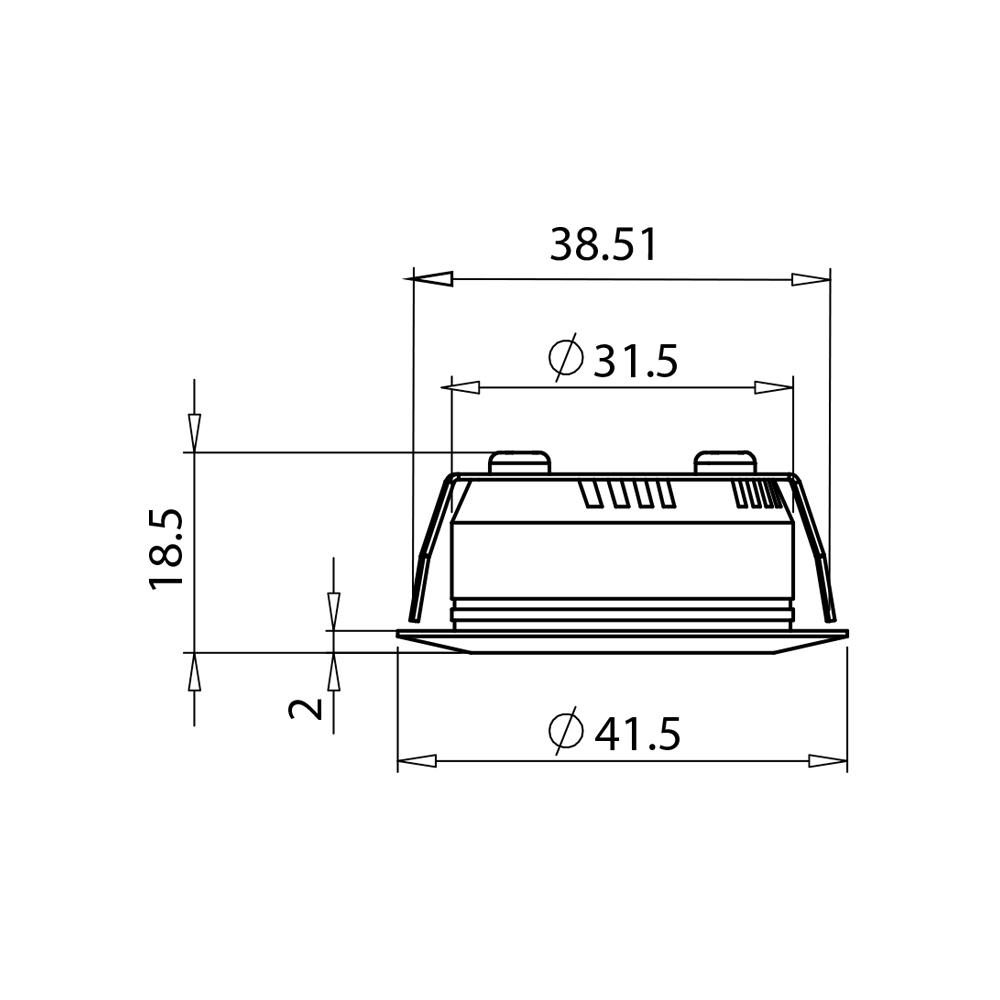

Height/depth
18.5mm
Outer diameter
41.5mm
Built-in diameter
34 - 36.5mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
No
Colour temperature
3000K
Colour rendering index CRI
90-100
Luminous flux adjustable
Continuously variable
Light outlet
Direct
Beam angle
> 80° - Extreme wide beam
Beam angle adjustable
No
Voltage type
DC
Nominal voltage
3.5 - 3.5V
Nominal current
0 - 700mA
Number of poles
2
Light source included
Yes, fixed LED
Light distributor
Reflector
Light distribution
Symmetric
Connectable conductor cross section
0.3 - 0.3mm²
Type of control gear
LED operating device current-controlled
With control gear
No
Degree of protection (IP), front side
IP44
Degree of protection (IP), rear side
IP20
Surface protection
Anodised
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
2.5W
Rated luminous flux according to IEC 62722-2- 1
0 - 125lm
Luminaire efficacy
50 - 50lm/W
Power factor
0.9
Suitable for lamp power
0 - 0W
Surface brushed
Yes
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
not adjustable
Unified Glare Ratio (UGR)
40
Reflector
None
Warranty
3 years
Control type
Constant current
Product Name
LED spot | cabinet | 700mA | 2,5W | alu | 3000K
Voltage type
DC
Ean
8714984903128
Nominal voltage
3.5 - 3.5V
Outer box qty
100st
Nominal current
0 - 700mA
Lamp type
LED not exchangeable
Number of poles
2
Lamp holder
None
Light source included
Yes, fixed LED
Housing colour
Aluminium
Light distributor
Reflector
Housing material
Aluminium
Light distribution
Symmetric
Height/depth
18.5mm
Connectable conductor cross section
0.3 - 0.3mm²
Outer diameter
41.5mm
Type of control gear
LED operating device current-controlled
Built-in diameter
34 - 36.5mm
With control gear
No
Suitable for built-in mounting
Yes
Degree of protection (IP), front side
IP44
Suitable for surface mounting
No
Degree of protection (IP), rear side
IP20
Suitable for pedestal/floor mounting
No
Surface protection
Anodised
Suitable for wall mounting
No
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
Yes
Max. system power
2.5W
Suitable for light-track mounting
No
Rated luminous flux according to IEC 62722-2- 1
0 - 125lm
Suitable for clamp-mounting
Yes
Luminaire efficacy
50 - 50lm/W
With movement sensor
No
Power factor
0.9
With presence detector
No
Suitable for lamp power
0 - 0W
With light sensor
No
Surface brushed
Yes
Colour of light
White
Type of wiring
Ending
Colour consistency (McAdam ellipse)
SDCM3
Emergency power supply system
None
Colour of light adjustable
No
Emergency function monitoring system
None
Colour temperature
3000K
Adjustability
not adjustable
Colour rendering index CRI
90-100
Unified Glare Ratio (UGR)
40
Luminous flux adjustable
Continuously variable
Reflector
None
Light outlet
Direct
Warranty
3 years
Beam angle
> 80° - Extreme wide beam
Control type
Constant current
Beam angle adjustable
No
With a recess depth of just 16.5 mm, this shallow LED module is perfect for applications with limited space. Ideal for kitchen cabinets, furniture, displays, counters or custom interiors, it delivers a wide 90° beam for soft, shadow-free lighting.
The module housing is available in black, white or aluminium, offering design flexibility across different furniture or interior styles. Available in 2700K and 3000K, providing warm white light suited to both ambient and functional use.
Operates on constant current up to 700 mA and integrates into professional control systems. Optional distribution blocks and extension cables support quick plug-and-play installation of multiple modules in series.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-spot-cabinet-700ma-25w-alu-3000k-148-128.pdf
Energy labels
Manual
20220908103204274_1824153805.pdf
Schema
20220908103227228_1814488707.pdf
Characteristics sheet
148-128-photometric-light-report.pdf
148-128.ldt
