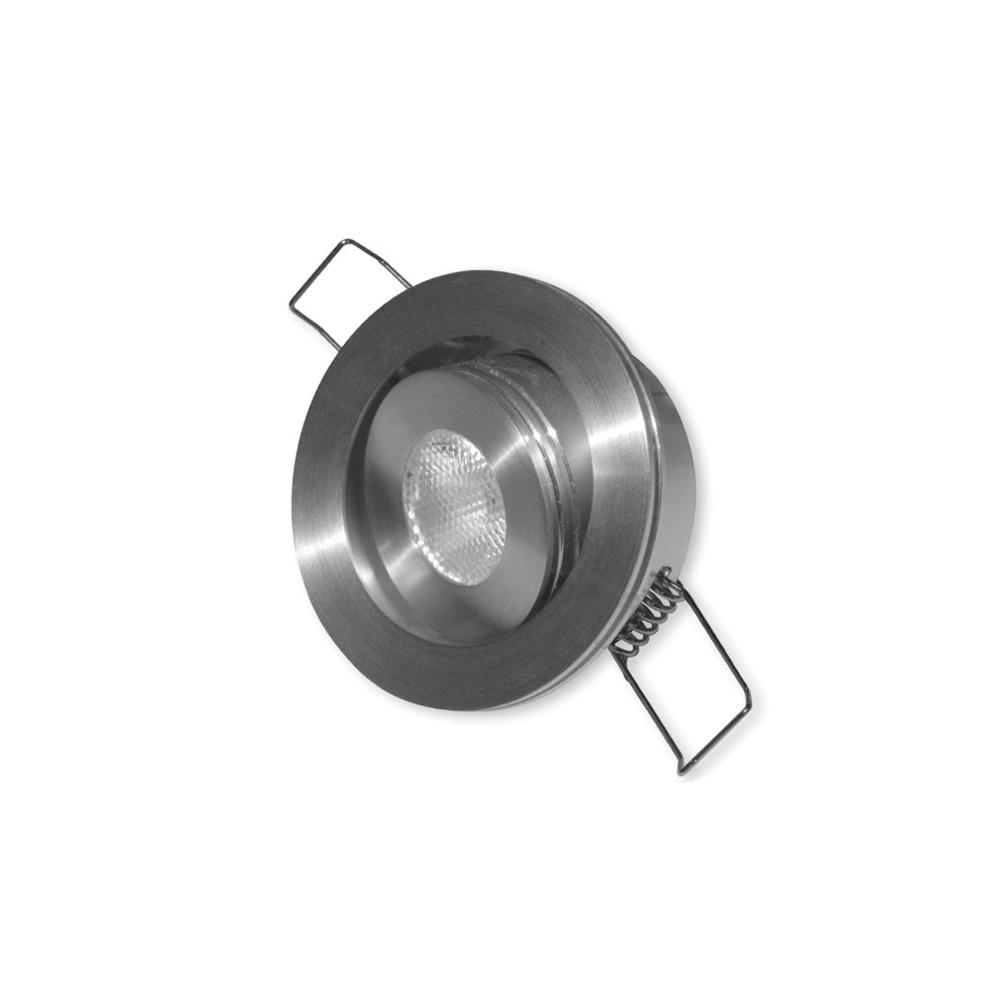

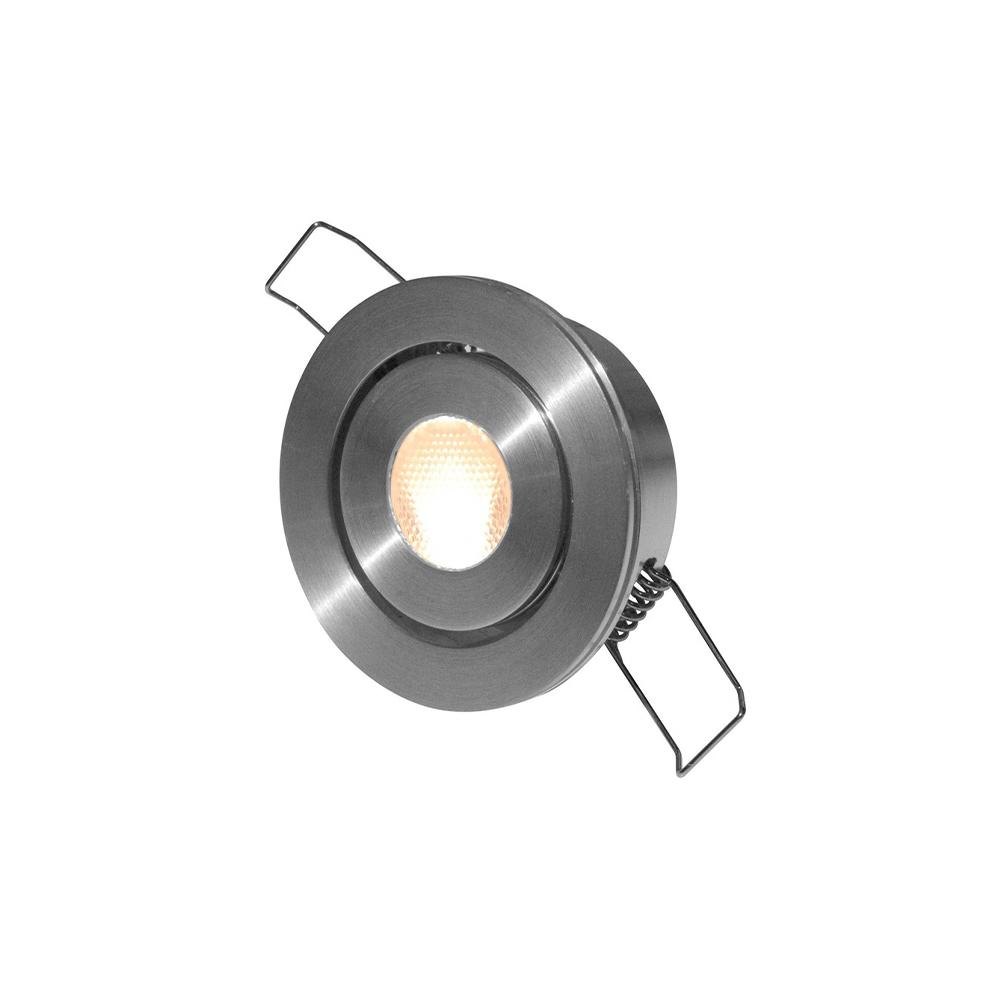

LED spot | downlight | 700mA | 2,5W | alu | 3000K
148-119Compact 2.5W LED spot module with constant current up to 700 mA – ideal for subtle, focused lighting in upscale interiors and outdoor structures. Available in various light colours and housing finishes to suit a wide range of applications.
Key product features
- Nominal current (mA): 0 - 700
- Max. system power (W): 2.5
- Colour temperature (K): 3000
- Housing colour: Aluminium
- Built-in diameter (mm): 44 - 45
Product Name
LED spot | downlight | 700mA | 2,5W | alu | 3000K
Ean
8714984911536
Outer box qty
100st
Lamp type
LED not exchangeable
Lamp holder
None
Housing colour
Aluminium
Housing material
Aluminium
Height/depth
31mm
Outer diameter
50mm
Built-in diameter
43 - 43mm
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Suitable for pedestal/floor mounting
No
Suitable for wall mounting
No
Suitable for ceiling mounting
Yes
Suitable for light-track mounting
No
Suitable for clamp-mounting
Yes
With movement sensor
No
With presence detector
No
With light sensor
No
Colour of light
White
Colour consistency (McAdam ellipse)
SDCM3
Colour of light adjustable
No
Colour temperature
3000K
Colour rendering index CRI
90-100
Luminous flux adjustable
Continuously variable
Light outlet
Direct
Beam angle
21-40° - Medium beam
Beam angle adjustable
No
Voltage type
DC
Nominal voltage
3.5 - 3.5V
Nominal current
0 - 700mA
Number of poles
2
Light source included
Yes, fixed LED
Light distributor
Focal lens
Light distribution
Symmetric
Connectable conductor cross section
0.3 - 0.3mm²
Type of control gear
LED operating device current-controlled
With control gear
No
Degree of protection (IP), front side
IP44
Degree of protection (IP), rear side
IP20
Surface protection
Anodised
Rated lifetime L70/B50 at 25 °C
50000h
Max. system power
2.5W
Rated luminous flux according to IEC 62722-2- 1
0 - 150lm
Luminaire efficacy
60 - 60lm/W
Power factor
0.9
Suitable for lamp power
0 - 0W
Surface brushed
Yes
Type of wiring
Ending
Emergency power supply system
None
Emergency function monitoring system
None
Adjustability
Swivelling
Unified Glare Ratio (UGR)
20
Reflector
None
Warranty
3 years
Control type
Constant current
Product Name
LED spot | downlight | 700mA | 2,5W | alu | 3000K
Voltage type
DC
Ean
8714984911536
Nominal voltage
3.5 - 3.5V
Outer box qty
100st
Nominal current
0 - 700mA
Lamp type
LED not exchangeable
Number of poles
2
Lamp holder
None
Light source included
Yes, fixed LED
Housing colour
Aluminium
Light distributor
Focal lens
Housing material
Aluminium
Light distribution
Symmetric
Height/depth
31mm
Connectable conductor cross section
0.3 - 0.3mm²
Outer diameter
50mm
Type of control gear
LED operating device current-controlled
Built-in diameter
43 - 43mm
With control gear
No
Suitable for built-in mounting
Yes
Degree of protection (IP), front side
IP44
Suitable for surface mounting
No
Degree of protection (IP), rear side
IP20
Suitable for pedestal/floor mounting
No
Surface protection
Anodised
Suitable for wall mounting
No
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for ceiling mounting
Yes
Max. system power
2.5W
Suitable for light-track mounting
No
Rated luminous flux according to IEC 62722-2- 1
0 - 150lm
Suitable for clamp-mounting
Yes
Luminaire efficacy
60 - 60lm/W
With movement sensor
No
Power factor
0.9
With presence detector
No
Suitable for lamp power
0 - 0W
With light sensor
No
Surface brushed
Yes
Colour of light
White
Type of wiring
Ending
Colour consistency (McAdam ellipse)
SDCM3
Emergency power supply system
None
Colour of light adjustable
No
Emergency function monitoring system
None
Colour temperature
3000K
Adjustability
Swivelling
Colour rendering index CRI
90-100
Unified Glare Ratio (UGR)
20
Luminous flux adjustable
Continuously variable
Reflector
None
Light outlet
Direct
Warranty
3 years
Beam angle
21-40° - Medium beam
Control type
Constant current
Beam angle adjustable
No
With a 50 mm diameter and a recess depth of only 27.5 mm, this compact spot module is perfect for installations with limited space. The aluminium housing is available in white, black or aluminium finish and provides excellent heat dissipation with a clean, professional look.
Powered by constant current up to 700 mA and compatible with professional drivers, this module is available in 2700K, 3000K and 6500K with CRI >90 for natural colour rendering. A standard 40° lens is included, while optional lenses (15°, 25°, 60°) allow precise beam control.
Suitable for use in showcases, retail and hospitality environments, as well as verandas, patio covers and other sheltered outdoor areas. Plug-and-play installation is supported using optional distribution blocks and extension cables.
More information
More information about this product can be found in the product specifications. For accessories, available options and related products, see related items. For questions or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-spot-downlight-700ma-25w-alu-3000k-148-119.pdf
Energy labels
Schema
20220908103227228_1814488707.pdf
Manual
20220908103204274_1824153805.pdf
Characteristics sheet
148-119-photometric-light-report.pdf
148-119.ldt
