LED panel | 60*60 | 25W | 3-CCT | excl. driver
173-002These driverless LED panels combine high efficiency with versatile control options. They are optionally available with a range of dimmable drivers, including phase-cut dimming and DALI, for maximum control and performance.
Key product features:
- With control gear: No
- Colour temperature (K): 3000 – 5700
- Built-in height/depth (mm): 25
- Unified Glare Ratio (UGR): 22
- Dimmable: Yes
- Luminaire efficacy (lm/W): 145 - 162
Product Name
LED panel | 60*60 | 25W | 3-CCT | excl. driver
Ean
8714984946620
Outer box qty
6st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
White
Material cover
Plastic, structured
Suitable for emergency lighting
Yes
Nominal current
0 - 650mA
Voltage type
DC
Type of control gear
LED operating device current-controlled
With control gear
No

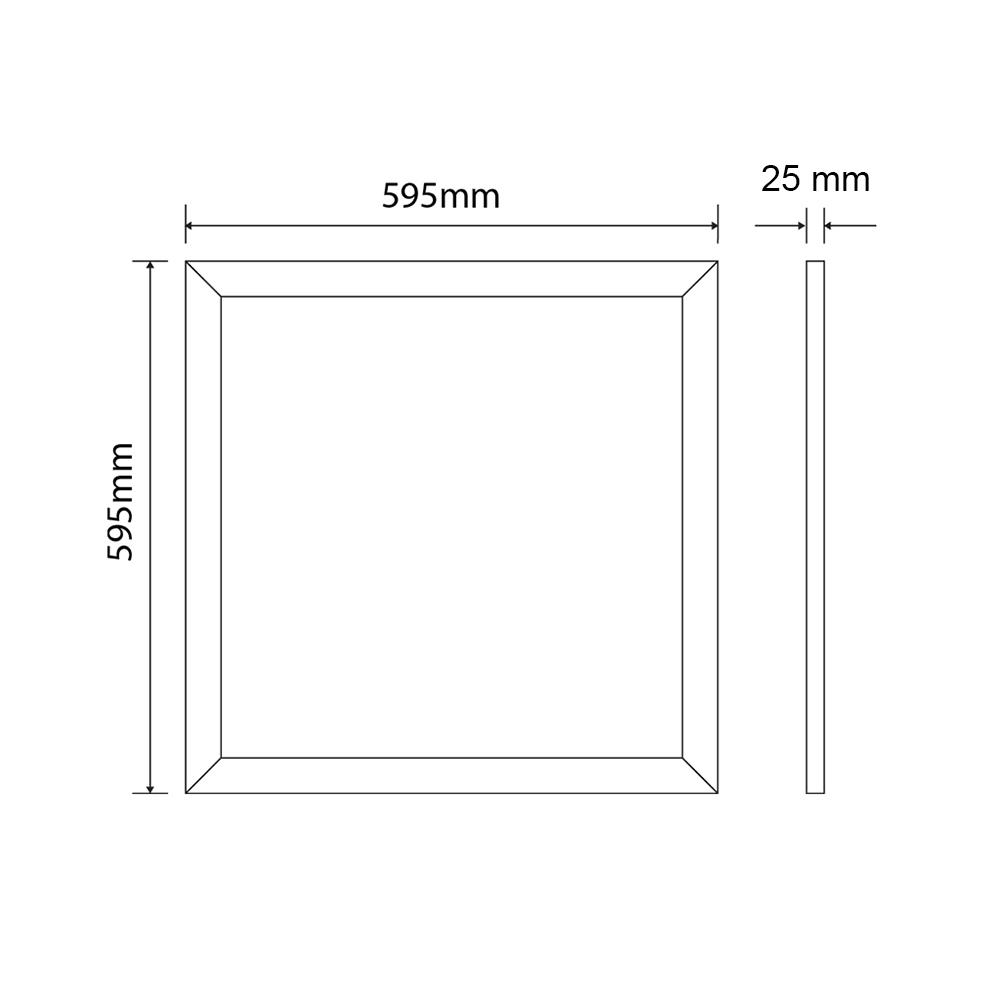

Built-in length
595mm
Built-in width
595mm
Constant light output (CLO)
Yes
Type of grid
None
Nominal voltage
38 - 38V
Length
595mm
Width
595mm
Height/depth
25mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
Yes
Dimming 0-10 V
Yes
Dimming 1-10 V
Yes
Dimming DALI
Yes
Dimming phase cut-off (trailing edge)
Yes
With movement sensor
No
With presence detector
No
Impact strength
IK02
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Light distribution
Symmetric
Beam angle
> 80° - Extreme wide beam
Light outlet
Direct
Dimming RF
Yes
Dimming Zigbee
Yes
Light distributor
Diffuser lens/optic/panel
Surface protection housing
Lacquered
Colour consistency (McAdam ellipse)
SDCM3
Rated lifetime L70/B50 at 25 °C
60000h
Colour of light adjustable
Continuously variable
Luminous flux adjustable
Continuously variable
Max. system power
25W
Beam angle adjustable
No
Power factor
1
Type of wiring
Ending
Number of poles
4
Built-in height/depth
25mm
Compatible with Casambi
Yes
Luminaire efficacy
150 - 150lm/W
Dimmable
Yes
Rated luminous flux according to IEC 62722-2- 1
0 - 3750lm
Emergency power supply system
None
Emergency function monitoring system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
Suitable for workplace according to EN 12464-1
Yes
Unified Glare Ratio (UGR)
21.3
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP20
With mounting material
Yes
Size
60x60 cm
Colour temperature
3000 - 4000 - 5700K
With connection cord and plug
No
Dimming method
Optional
Warranty
5 years
Product Name
LED panel | 60*60 | 25W | 3-CCT | excl. driver
Light outlet
Direct
Ean
8714984946620
Dimming RF
Yes
Outer box qty
6st
Dimming Zigbee
Yes
Lamp type
LED not exchangeable
Light distributor
Diffuser lens/optic/panel
Housing material
Aluminium
Surface protection housing
Lacquered
Housing colour
White
Colour consistency (McAdam ellipse)
SDCM3
Material cover
Plastic, structured
Rated lifetime L70/B50 at 25 °C
60000h
Suitable for emergency lighting
Yes
Colour of light adjustable
Continuously variable
Nominal current
0 - 650mA
Luminous flux adjustable
Continuously variable
Voltage type
DC
Max. system power
25W
Type of control gear
LED operating device current-controlled
Beam angle adjustable
No
With control gear
No
Power factor
1
Built-in length
595mm
Type of wiring
Ending
Built-in width
595mm
Number of poles
4
Constant light output (CLO)
Yes
Built-in height/depth
25mm
Type of grid
None
Compatible with Casambi
Yes
Nominal voltage
38 - 38V
Luminaire efficacy
150 - 150lm/W
Length
595mm
Dimmable
Yes
Width
595mm
Rated luminous flux according to IEC 62722-2- 1
0 - 3750lm
Height/depth
25mm
Emergency power supply system
None
Colour of light
White
Emergency function monitoring system
None
Colour rendering index CRI
80-89
Suitable for ceiling mounting
Yes
Exchangeable control gear
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Dimming 0-10 V
Yes
Suitable for wall mounting
Yes
Dimming 1-10 V
Yes
Suitable for suspended mounting
Yes
Dimming DALI
Yes
Suitable for workplace according to EN 12464-1
Yes
Dimming phase cut-off (trailing edge)
Yes
Unified Glare Ratio (UGR)
21.3
With movement sensor
No
Degree of protection (IP), rear side
IP20
With presence detector
No
Degree of protection (IP), front side
IP20
Impact strength
IK02
With mounting material
Yes
With light sensor
No
Size
60x60 cm
Suitable for surface mounting
Yes
Colour temperature
3000 - 4000 - 5700K
Suitable for built-in mounting
Yes
With connection cord and plug
No
Light distribution
Symmetric
Dimming method
Optional
Beam angle
> 80° - Extreme wide beam
Warranty
5 years
The slim design and high efficiency of up to 150 lm/W make these LED panels ideal for professional environments where energy consumption and light quality are critical. While supplied without a driver, they are compatible with a wide range of dimmable options, including phase-cut and DALI systems.
The panel also supports tunable white control via DALI DT8, enabling maximum flexibility in adjusting light levels and colour temperature to suit the time of day and activity. Available with or without a UGR<19 louvre, depending on the visual comfort requirements of the project.
More information
More details on this product can be found in the specifications. For accessories, available options, and related products, see the related items. For questions or advice, contact Tronix Lighting at sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-panel-6060-25w-3-cct-excl-driver-173-002.pdf
Energy labels
Characteristics sheet
173-002-photometric-light-report.pdf
173-002-photometric-light-report-detailed.zip
173-002-eulumdat.zip
