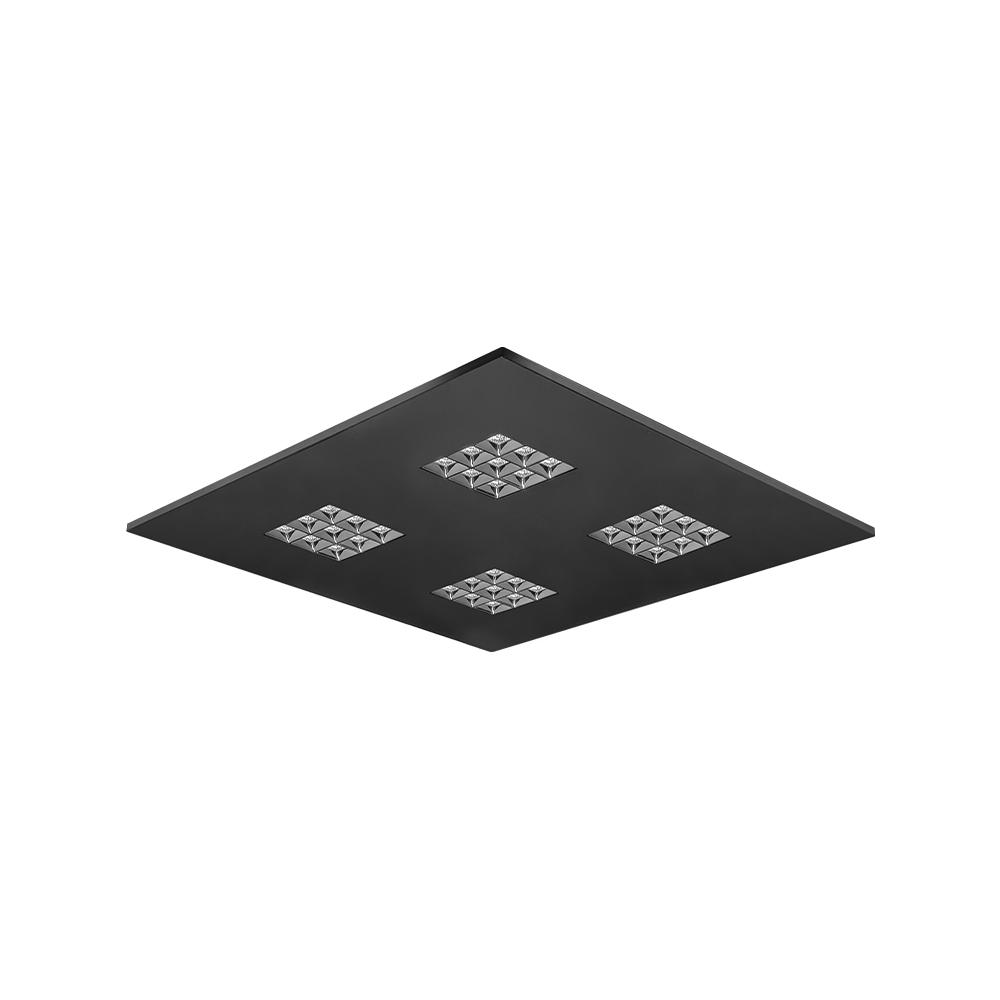

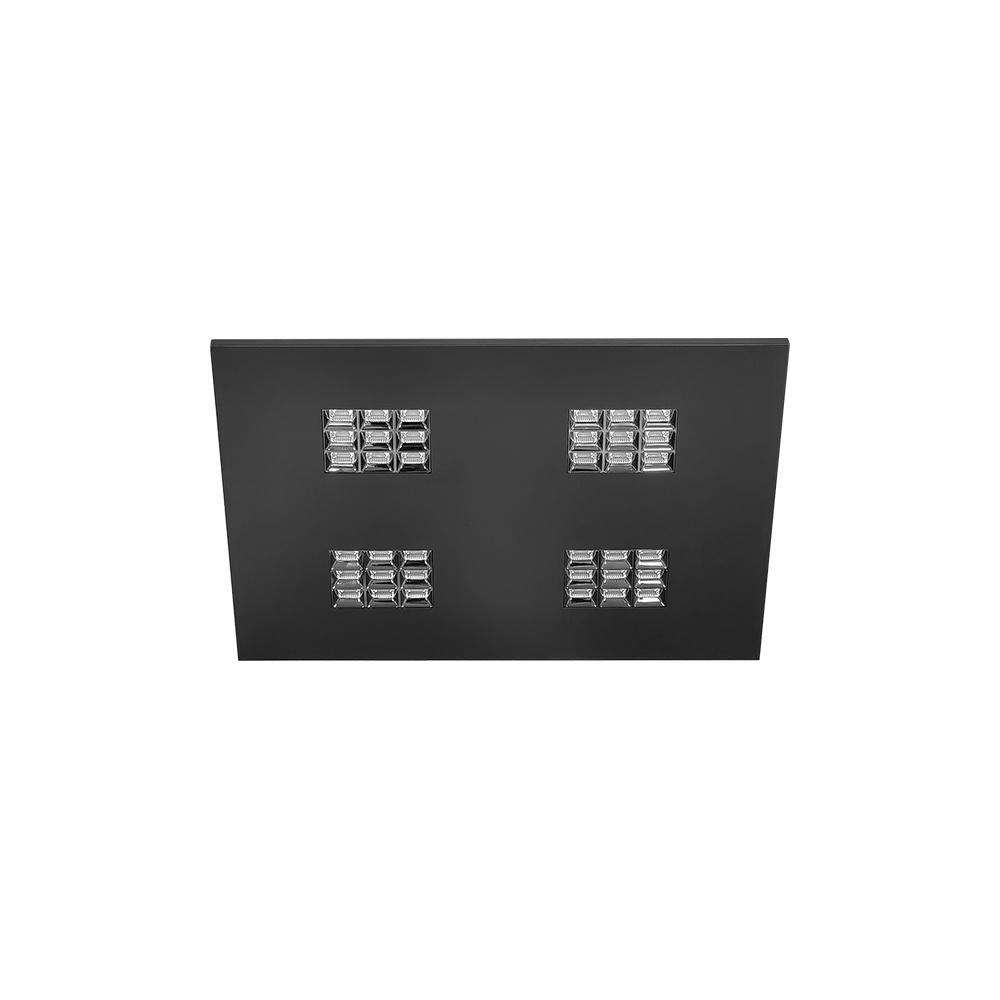

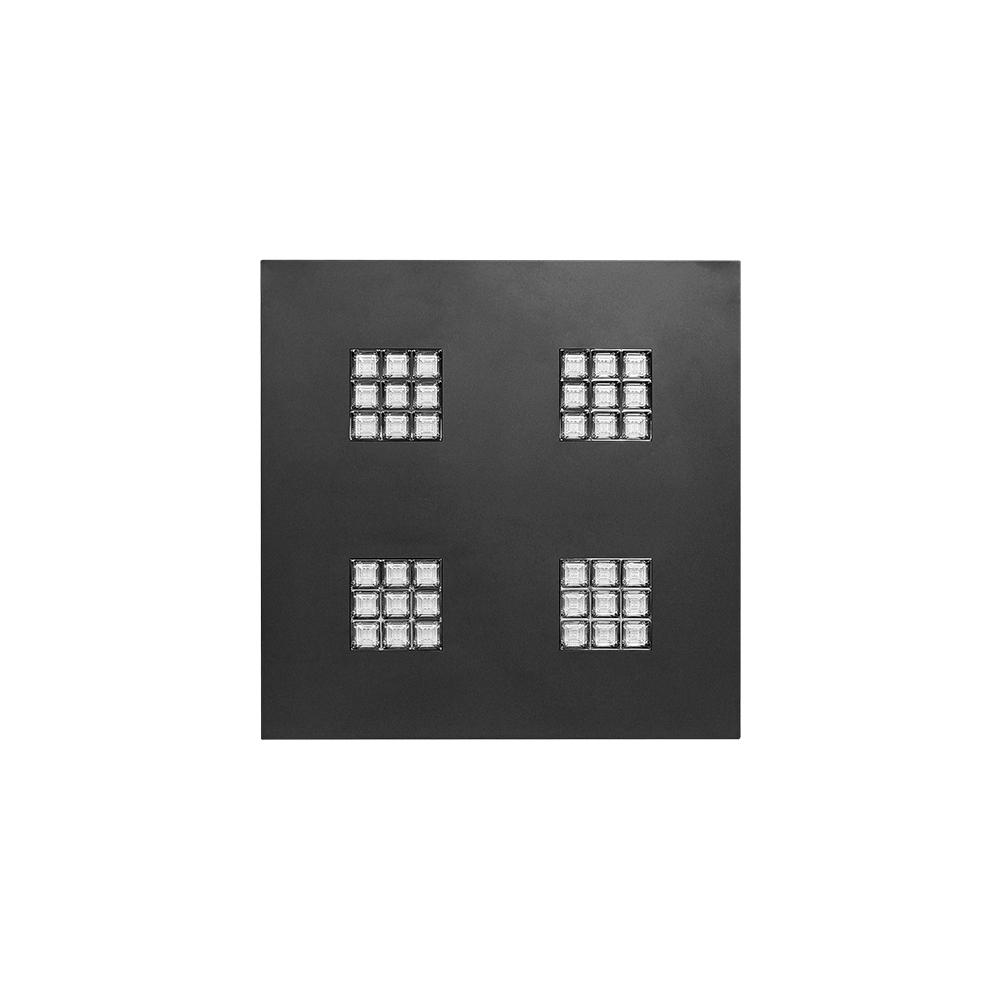

LED panel | reflector | 60*60 | 3-CCT | black | no driver
173-061Efficient LED panel with integrated reflector and low glare value (UGR<17). Supplied without driver, Tunable White compatible. Ideal for applications where visual comfort is key.
Key product features:
- With control gear: No
- Colour temperature (K): 3000 - 5700
- Housing colour: Black
- Light distributor: Reflector
- Unified Glare Ratio (UGR): 17
- Luminaire efficacy (lm/W): 139 - 154
This panel is delivered excl. driver, so it can be made dimmable. To make it dimmable, you need the following:
Single color:
- Connector set 173-096;
- Triac, Dali, 1-10V or RF dimmable driver (find related products, set to 650mA);
- Europlug or GST-plug.
Tuneable white:
- Connector set 173-095;
- Dali or RF dimmable driver that is suitable for tuneable white (find related products, set to 650mA);
- Europlug or GST-plug.
Product Name
LED panel | reflector | 60*60 | 3-CCT | black | no driver
Ean
8714984949867
Outer box qty
5st
Lamp type
LED not exchangeable
Housing material
Aluminium
Housing colour
Black
Suitable for emergency lighting
Yes
Nominal current
700 - 700mA
Voltage type
DC
Type of control gear
LED operating device current-controlled
With control gear
No

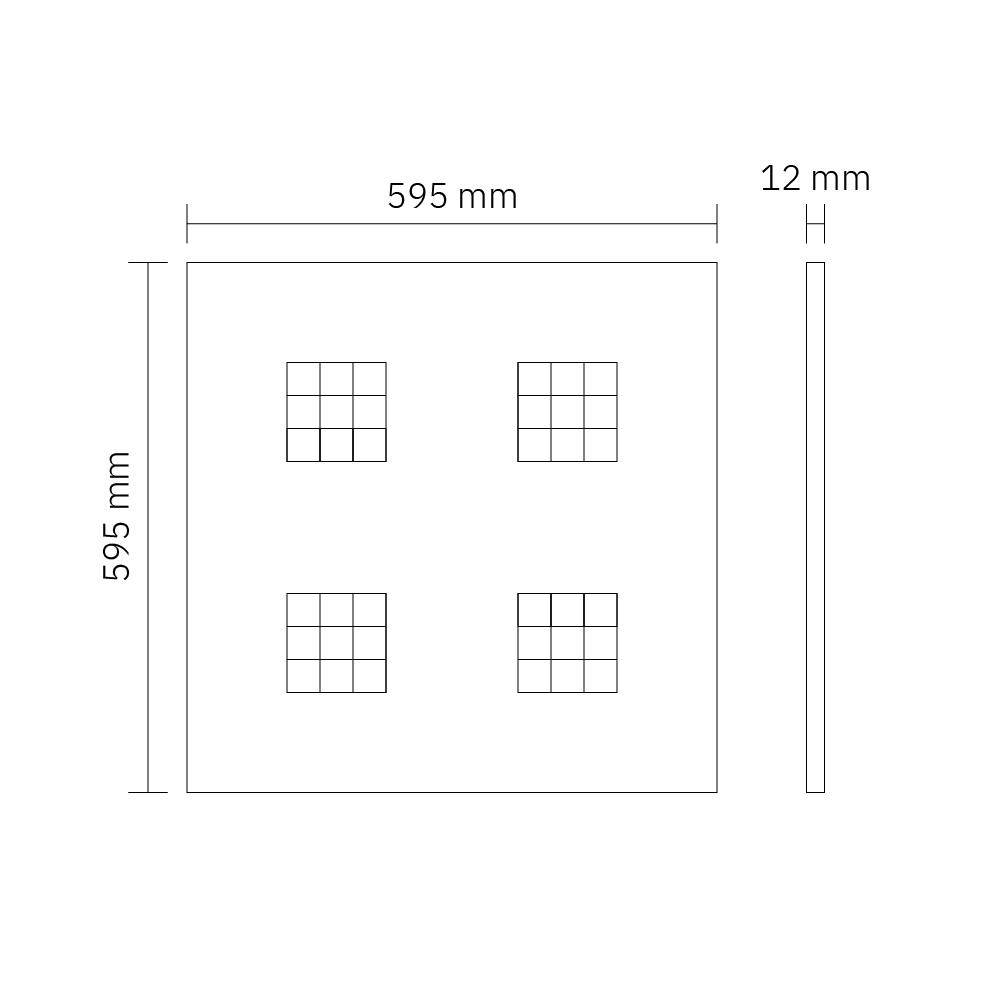

Built-in length
595mm
Built-in width
595mm
Constant light output (CLO)
Yes
Type of grid
None
Nominal voltage
38 - 38V
Length
595mm
Width
595mm
Height/depth
12mm
Colour of light
White
Colour rendering index CRI
80-89
Exchangeable control gear
Yes
Dimming 0-10 V
Yes
Dimming 1-10 V
Yes
Dimming DALI
Yes
Dimming phase cut-off (trailing edge)
Yes
With movement sensor
No
With presence detector
No
Impact strength
IK02
With light sensor
No
Suitable for surface mounting
Yes
Suitable for built-in mounting
Yes
Light distribution
Symmetric
Beam angle
41-80° - Wide beam
Light outlet
Direct
Dimming RF
Yes
Dimming Zigbee
Yes
Light distributor
Reflector
Surface protection housing
Powder coating
Colour consistency (McAdam ellipse)
SDCM6
Rated lifetime L70/B50 at 25 °C
50000h
Colour of light adjustable
Continuously variable
Luminous flux adjustable
Continuously variable
Max. system power
26W
Beam angle adjustable
No
Power factor
1
Type of wiring
Ending
Number of poles
4
Built-in height/depth
12mm
Compatible with Casambi
Yes
Luminaire efficacy
150 - 150lm/W
Dimmable
Yes
Rated luminous flux according to IEC 62722-2- 1
3750 - 3750lm
Emergency power supply system
None
Emergency function monitoring system
None
Suitable for ceiling mounting
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Suitable for wall mounting
Yes
Suitable for suspended mounting
Yes
Suitable for workplace according to EN 12464-1
Yes
Unified Glare Ratio (UGR)
17
Degree of protection (IP), rear side
IP20
Degree of protection (IP), front side
IP20
With mounting material
Yes
Size
60x60 cm
Colour temperature
3000 - 4000 - 5700K
With connection cord and plug
No
Dimming method
Optional
Warranty
5 years
Ambient temperature
-20 - 45°C
Product Name
LED panel | reflector | 60*60 | 3-CCT | black | no driver
Dimming RF
Yes
Ean
8714984949867
Dimming Zigbee
Yes
Outer box qty
5st
Light distributor
Reflector
Lamp type
LED not exchangeable
Surface protection housing
Powder coating
Housing material
Aluminium
Colour consistency (McAdam ellipse)
SDCM6
Housing colour
Black
Rated lifetime L70/B50 at 25 °C
50000h
Suitable for emergency lighting
Yes
Colour of light adjustable
Continuously variable
Nominal current
700 - 700mA
Luminous flux adjustable
Continuously variable
Voltage type
DC
Max. system power
26W
Type of control gear
LED operating device current-controlled
Beam angle adjustable
No
With control gear
No
Power factor
1
Built-in length
595mm
Type of wiring
Ending
Built-in width
595mm
Number of poles
4
Constant light output (CLO)
Yes
Built-in height/depth
12mm
Type of grid
None
Compatible with Casambi
Yes
Nominal voltage
38 - 38V
Luminaire efficacy
150 - 150lm/W
Length
595mm
Dimmable
Yes
Width
595mm
Rated luminous flux according to IEC 62722-2- 1
3750 - 3750lm
Height/depth
12mm
Emergency power supply system
None
Colour of light
White
Emergency function monitoring system
None
Colour rendering index CRI
80-89
Suitable for ceiling mounting
Yes
Exchangeable control gear
Yes
Connectable conductor cross section
0.75 - 0.75mm²
Dimming 0-10 V
Yes
Suitable for wall mounting
Yes
Dimming 1-10 V
Yes
Suitable for suspended mounting
Yes
Dimming DALI
Yes
Suitable for workplace according to EN 12464-1
Yes
Dimming phase cut-off (trailing edge)
Yes
Unified Glare Ratio (UGR)
17
With movement sensor
No
Degree of protection (IP), rear side
IP20
With presence detector
No
Degree of protection (IP), front side
IP20
Impact strength
IK02
With mounting material
Yes
With light sensor
No
Size
60x60 cm
Suitable for surface mounting
Yes
Colour temperature
3000 - 4000 - 5700K
Suitable for built-in mounting
Yes
With connection cord and plug
No
Light distribution
Symmetric
Dimming method
Optional
Beam angle
41-80° - Wide beam
Warranty
5 years
Light outlet
Direct
Ambient temperature
-20 - 45°C
This high-quality LED panel offers a UGR<17 glare value, making it well-suited for environments where visual comfort is essential, such as offices, schools, or healthcare settings. It combines refined design with advanced optics and achieves up to 155 lm/W.
The panel is supplied without driver by default, with optional dimmable driver compatibility (including phase-cut and DALI). The design also supports Tunable White applications with DALI DT8 control for adaptive colour temperature management throughout the day.
More information
More information about this product can be found in the product specifications. For accessories, available options, and related products, see the related items. For inquiries or advice, contact Tronix Lighting via sales@tronixlighting.com or +31 413 330 380.
Datasheet
Datasheet-led-panel-reflector-6060-3-cct-black-no-driver-173-061.pdf
Energy labels
Characteristics sheet
173-061-photometric-light-report.pdf
173-061-photometric-light-report-detailed.zip
173-061-eulumdat.zip
